solar amber warning Traffic Fog Light
  • solar amber warning Traffic Fog Light
  • solar amber warning Traffic Fog Light
  • solar amber warning Traffic Fog Light
  • solar amber warning Traffic Fog Light
  • solar amber warning Traffic Fog Light
  • solar amber warning Traffic Fog Light
solar amber warning Traffic Fog Light
solar amber warning Traffic Fog Light
solar amber warning Traffic Fog Light
solar amber warning Traffic Fog Light
solar amber warning Traffic Fog Light
solar amber warning Traffic Fog Light

solar amber warning Traffic Fog Light

Payment Type:
T/T, D/P, Paypal, Money Gram, Western Union
Incoterm:
EXW
Delivery Time:
5 Days
Transportation:
Ocean, Land, Air
Port:
Shenzhen
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: guangdong
Productivity: 50000
Supply Ability: stock
Payment Type: T/T,D/P,Paypal,Money Gram,Western Union
Incoterm: EXW
Certificate: CE/ROHS
HS Code: 8530800000
Transportation: Ocean,Land,Air
Port: Shenzhen
Product Description
Product Description

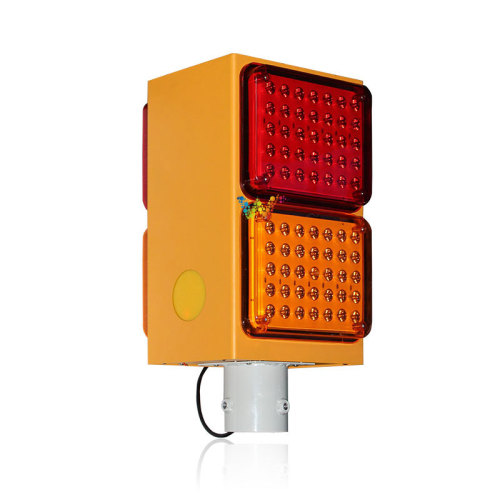

Fog area radar induction system-introduction of solar amber warning Traffic Fog Light:
Fog area radar induction system-fog lights are often used in highways and toll stations to warn drivers to pay attention to driving safety.
Fog area radar induction system-fog lights are usually installed on both sides of the highway in the fog area. The characteristics of fast traffic and high traffic on the highway. Fog lights are installed at the corners of roads, passing bridges, and entrances and exits of tunnels, which plays a certain role in improving road traffic safety and reducing traffic accidents. At the same time, the fog lamp can effectively guide the vehicle operation in the case of rain and fog.

Fog area radar induction system-the fog lamp uses outdoor in-line lamp beads, the lamp beads are red and yellow, the shell is made of cold-rolled plate material, and the pole is used for installation, which is simple and convenient. The lighting mode is flashing, the working voltage is 220V, the controller controls the fog lights to flash synchronously, and the sensor senses that the fog lights are higher than the set value and the fog lights are lit, and the lights are not lit when they are lower.

Fog-light_01

Fog area radar induction system-what role does the solar amber warning Traffic Fog Light have?

Highway synchronous fog lights are installed in a large number of foggy areas and long downhill areas. The yellow lights with strong penetrating power are used to warn passing vehicles to slow down. Usually the yellow module flashes. When the fog lights sense that a vehicle is passing through the radar At this time, the red module on the fog lamp will light up for 1 second, and then turn off, warning that there is a car in front of the vehicle behind, pay attention to slow driving; the vehicle driving in the fog area can ensure that the driving is safe from the impact of visibility and can be in the rain, Linear navigation guidance is formed in low visibility environments such as fog, snow, and night, which greatly reduces the occurrence of highway traffic accidents and ensures the safety of people and property.

Fog-light_04

Fog area radar induction system-details of solar amber warning Traffic Fog Light parameters:
Product Name: Fog area radar induction system-fog light
Product model: WDM-TB-WD-RY
Number of lamp beads: 35*2 pieces each of red and yellow
Lamp beads category: Taiwan Epistar chip lamp beads
Yellow wavelength: 590-595NM
Red wavelength: 620-625NM
Lamp voltage: AC85-265V
Control box input voltage: AC85-265V, 47Hz~63Hz
Control box output voltage: DC12V
Control box output power: 200W
Shell material: electrostatic spraying, sheet metal chassis
LED angle: horizontal -30°, vertical -30°
Working current: ≤250mA
Brightness: ≥8000mcd/m2
Lamp size: 400*250*180mm
Control box size: 450*350*110
Sensor size: 250*80*145MM
Working temperature: -40℃~+80℃
Relative humidity: 10%~95%
Shell color: yellow
Visible distance: ≥300m
Service life: 100000H
Protection level: IP65
Applicable venues: toll stations, safety islands, highways, etc.
Installation method: pole installation

Warranty period: 2 years

Fog-light_05

Radar induction system in fog area-installation instructions for solar amber warning Traffic Fog Light:

Put the fog radar sensor system-fog lamp on the pole, and the wire needs to pass through the pole; then pass the screw through the base on the lamp and screw them into the holes on the bottom of the lamp. To prevent damage to the lamp by shaking, be sure to tighten the screws. There is a flange on the bottom of the pole, and there are holes on the top. Use screws to fix the pole on the ground or on the safety island.

Fog-light_06

In addition to the fog sensor system, fog lights, Vimee also produces other traffic lights:
Solar Traffic Light
Directional Traffic Light
Portable Traffic Light
Solar Portable Traffic Light
Armber Traffic Light
Solar Flashing Warning Light
Solar Amber Warning Light
Solar Yellow Blinker Lignt

Fog-light_08Fog-light_09
