traffic arrow board parts yellow LED pixel tube
- Payment Type:
- T/T, D/P, Paypal, Money Gram, Western Union
- Incoterm:
- EXW
- Transportation:
- Ocean, Land, Air
- Port:
- Shenzhen
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | guangdong |
|---|---|
| Productivity: | 500000 |
| Supply Ability: | stock |
| Payment Type: | T/T,D/P,Paypal,Money Gram,Western Union |
| Incoterm: | EXW |
| Certificate: | CE/ROHS |
| HS Code: | 8530800000 |
| Transportation: | Ocean,Land,Air |
| Port: | Shenzhen |
Product Description
Product Description

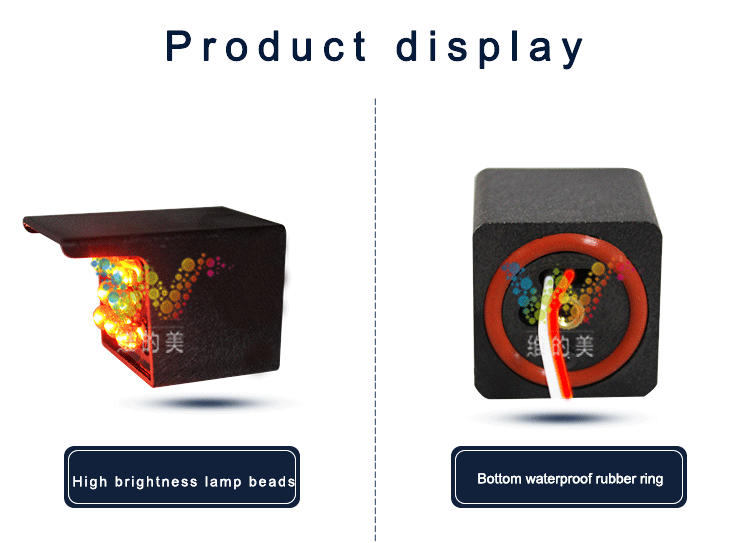

traffic arrow board parts yellow LED pixel tube
Product size: 28mm
Product installation positioning column: single column and double columnProduct voltage: 12V, or according to the needs of customers

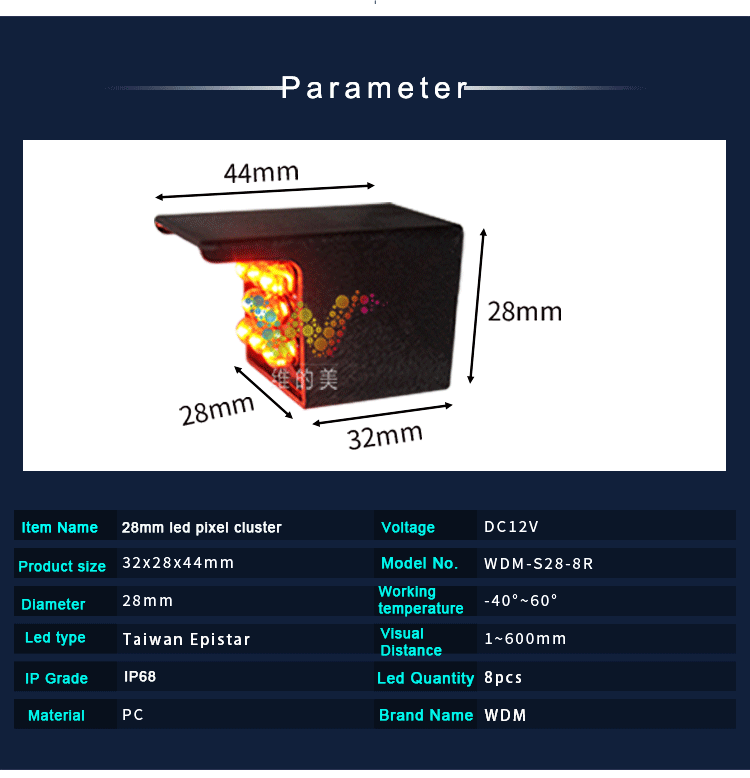

One: technical parameters
1. Input rated voltage: 6V～12V
2. Input power: 0.24W
3. Luminous intensity: ≥400cd, angle ≥30°
4. Luminescence chromatography: red 620nm, yellow 590nm, green 523nm
5. Working temperature: -40∽+80℃
6. Shell protection level: dustproof IP5X waterproof IPX3
8. Electrical parameters: Insulation resistance ≥500M∏; withstand voltage 1500VAC
9, light source life ≥ 100,000 hours, visible distance ≥ 100m;
10. Size of light emitting surface: 28mm
11. Shell protection grade: IP53 temperature resistance -40℃--75℃

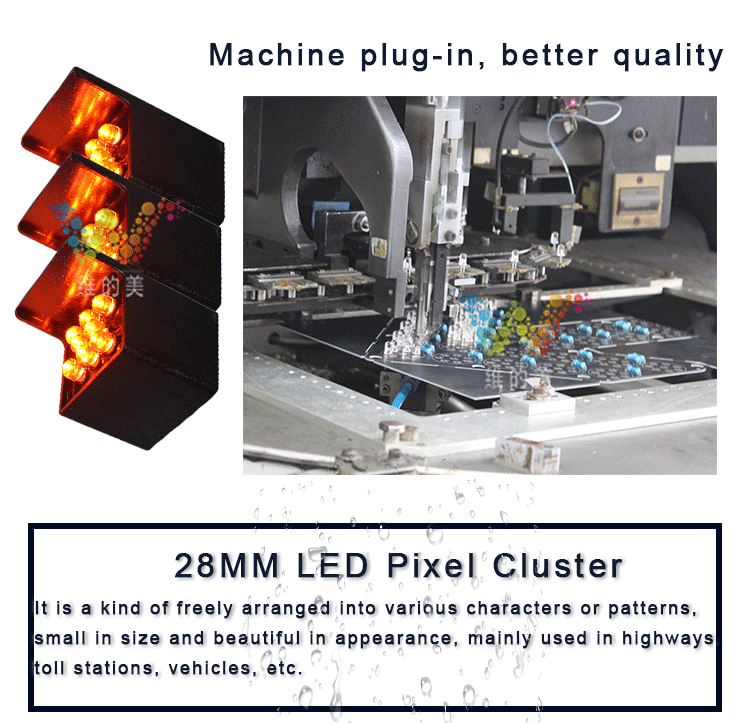

Produce the designed LED pixel tube circuit board, prepare all the corresponding resistors and LEDs, and then prepare to start the pipeline to start the operation, the AI vertical machine starts to insert the lights, the DIP straight plug starts, and all the resistors and LEDs are compiled With a resistor machine, first put a resistor on the circuit board, and then put it into a global vertical machine to start LED in-line insertion. Insert the entire LED board according to the set procedure.
Introduction of traffic arrow board parts yellow LED pixel tube:
LED pixel tube is a kind of traffic warning lights that can be freely arranged and combined, such as: a variety of on-board guidance signs, fan-shaped warning lights, etc. The S28 pixel tube is small in size and beautiful in appearance; you can also customize it with samples , You are welcome to call for information.
Products composed of traffic arrow board parts yellow LED pixel tube:
In addition to LED pixel tubes, We also produces other traffic lights:
1. Integrated motorized signal light
2.300mm left and right green arrow two lights
3.125mm teaching red, yellow and green lights (with voice tripod)
4.125mm red and green traffic lights
