Guidance Road Safety 300mm LED Pedestrian Traffic Light
Features of Guidance Road Safety 300mm LED Pedestrian Traffic Light:
The 300 full-panel red and green lights use Taiwan Epistar chip beads, high brightness, high refresh rate, and long service life.
300 type full-panel red and green lights are designed with outlet holes on the back, which is not only convenient for outlet, but also has a good waterproof effect.
The sunshade of the 51.300 full-panel red and green lights is made of PC material, which has good waterproof and dustproof effect and simple installation.
The 300MM full-panel red and green lights each use a snap-type design, which facilitates the inspection and maintenance of the product.

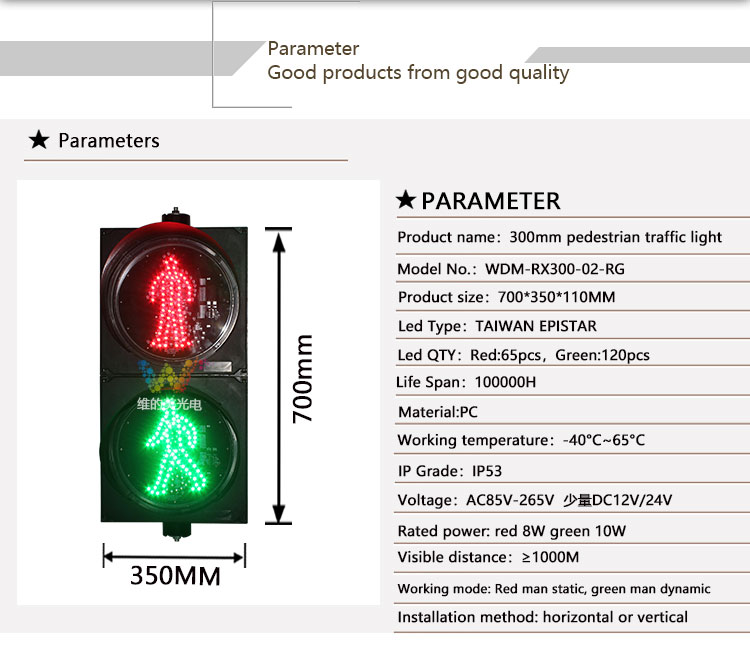

Product model: WDM-RX300-02-RG is mainly used in driving schools, intersections and other places.
1. Product size: 700*350*110MM (without decorative edge)
2. Number of lamp beads: 65 reds, 120 greens
3. Luminous diameter: 300MM
4. Lamp beads category: Taiwan Epistar chip lamp beads
5. Red wavelength: 620-625NM
6. Green wavelength: 500-505NM (blue-green) 520-525NM (emerald green)
7. Visible distance: ≥1000M
8. Service life: 100000H
9. Shell material: PC
10. Light angle: 30°
11. Working temperature: -40℃-65℃
12. Protection level: IP53
13. Working voltage: AC85V-265V a small amount of DC12V/24V
14. Rated power: red 8W green 10W
15. Working mode: Red man static, green man dynamic
16. Installation method: vertical installation
Three, the physical picture of the 300mm pedestrian two lights:
Installation method: vertical installation
1. There is a screw on both ends, unscrew the nut above the screw,
2. Put the flat end of the "L" type bracket on the screw according to the hole position and the clamping slot, and tighten the nut.
3. Visor cap, installed on the upper part of the lamp, fold the 3 corner aluminum plate into a circular arc shape, put it on the lamp, and align it with screws
Tighten the corresponding holes.
4. Make two holes on the signal light pole, drill holes according to the hole position of the signal L bracket, and use a suitable screw to pass through the light pole,
Put the L-shaped bracket on the screw and fix it with the nut. (as the picture shows)
Note 2 points:
1. The sun visor is on the upper part of the lamp
2. Outlet hole facing down (as shown)
5. Wiring method of 300 type pedestrian two lights:
1. Connect to DC12V/24V:
Red positive electrode
Red and black red light cathode;
Green line green light negative;
2. Connect to AC220V:
Black zero line
Red line red light fire line;
Green line Green light Fire line;
6. Details of accessories for 300 pedestrian lights:
(1) Lamps: 1 (2) Instructions: 1 (3) Certificate: 1 (4) L-shaped bracket: 2 (5) Sunshade: 2 (6) M4 screws: 8
