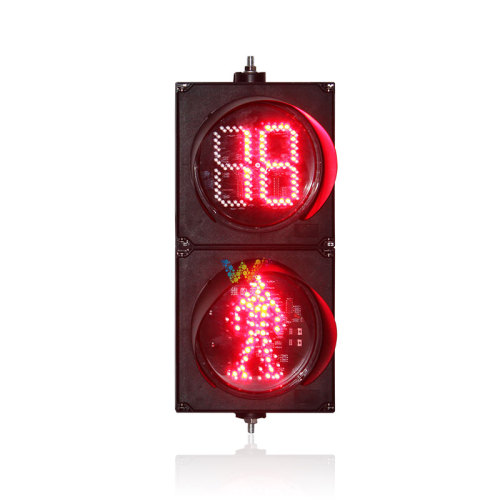

200mm pedestrian signal countdown timer led traffic light
Product service for the 200mm pedestrian signal countdown timer led traffic light
After sales service
If the solar traffic light system does not work orderly when you got the products, such as disabled to use , the freight will be paid by us. meanwhile, we will send the new products to you . If the solar traffic light system was damaged after a period of using within the warranty period, we also offer the new products to you, but you need pay freight.
Warranty time: 3 years.
we can offer the free professional training for you. if you order more, we can send out our technical personnel to your company.
Quality inspect standards
All the flashing traffic light must be inspected 72 hours before delivery.
Our factory has strict quality test and control from raw material inspected to inspected before loading.
We will follow up all the goods update news after delivery, and notify customers in our first time.
Product model: WDM-DJ200-02 is mainly used in driving schools, intersections and other places.
1. Product size: 550*300*60MM
2. Number of lamp beads: 37 reds, 44 greens Countdown: 64 reds and greens
3. Luminous diameter: 200MM
4. Lamp beads category: Taiwan Epistar chip lamp beads
5. Red wavelength: 620-625NM
6. Green wavelength: 500-505NM (blue-green) 520-525NM (emerald green)
7. Visible distance: ≥1000M
8. Service life: 100000H
9. Shell material: PC
10. Light angle: 30°
11. Working temperature: -40℃-65℃
12. Protection level: IP53
13. Working voltage: AC85V-265V a small amount of DC12V/24V
14. Rated power: red 8W green 10W
15. Installation method: vertical installation
1.200mm pedestrian signal countdown timer led traffic light adopt Taiwan wafer chip lamp beads, high brightness, high refresh rate, and long service life.
2.200mm pedestrian signal countdown timer led traffic light are designed with outlet holes on the back, which is not only convenient for outlet, but also has a good waterproof effect.
3.200mm pedestrian signal countdown timer led traffic light is made of PC material, which has a good waterproof and dustproof effect and is easy to install.
4.200mm pedestrian signal countdown timer led traffic lights each lamp and the lamp this fixed design with copper gong pillars, which facilitates the inspection and maintenance of products.

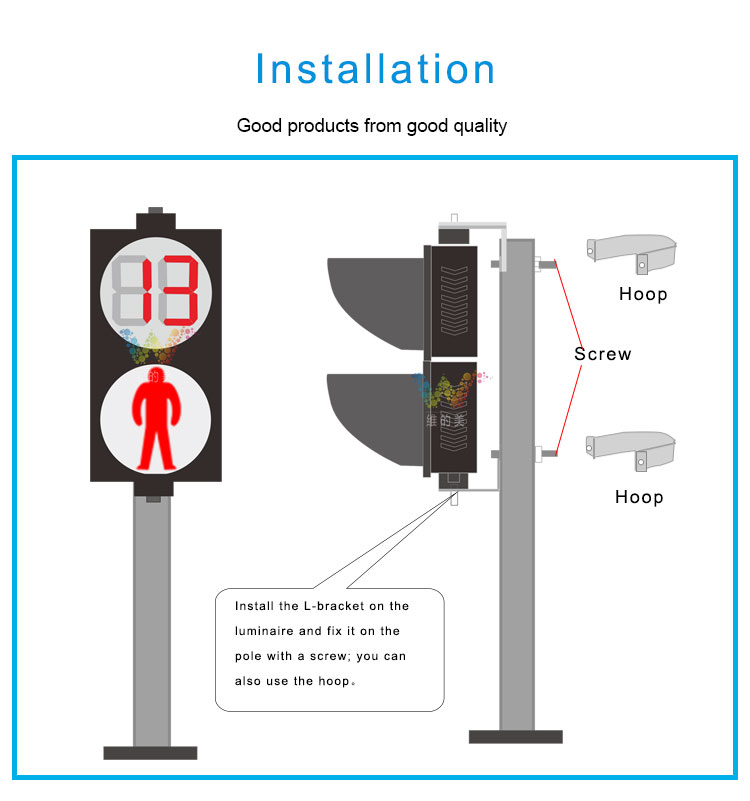

The installation method of 200mm pedestrian signal countdown timer led traffic light:
1. There is a screw on both ends, unscrew the nut above the screw,
2. Put the flat end of the "L" type bracket on the screw according to the hole position and the clamping slot, and tighten the nut. (as the picture shows)
3. The sun visor is installed on the upper part of the lamp. Fold the 3-corner aluminum plate into a circular arc shape, put it on the lamp, and tighten it with the screw to the corresponding hole position.
4. Make two holes on the signal light pole, drill holes according to the signal L-bracket position, use a suitable screw to pass through the light pole, and put the L-shaped bracket on the screw and fix it with the nut. (as the picture shows)
1. Connect to AC220V:
The black line is the common zero line;
The red line is the red man fire line/red countdown fire line;
The green line is Green Man FireWire/Green Countdown FireWire;
Details of accessories for 200mm pedestrian signal countdown timer led traffic light:
(1) Lamps: 1
(2) Instructions: 1
(3) Certificate: 1
(4) L-shaped bracket: 2
(5) Sunshade: 2
(6) M4 screws: 8
In addition to the Stainless Steel 100mm Mini Traffic Signal Light, Shenzhen Victoria Microelectronics Co., Ltd. also produces other types of small traffic lights:
125MM red green traffic lights;
200MM traffic signal lights and so on.
