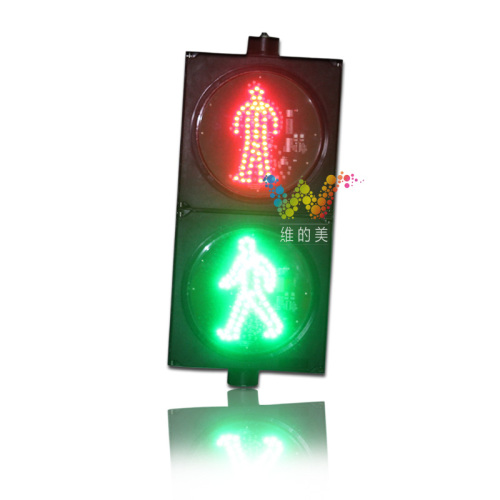

200mm Sidewalk Pavement Pedestrian Traffic Signal Light
- Payment Type:
- T/T, D/P, Paypal, Money Gram, Western Union
- Incoterm:
- EXW
- Delivery Time:
- 5 Days
- Transportation:
- Ocean, Land, Air
- Port:
- Shenzhen
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | guangdong |
|---|---|
| Productivity: | 50000 |
| Supply Ability: | stock |
| Payment Type: | T/T,D/P,Paypal,Money Gram,Western Union |
| Incoterm: | EXW |
| Certificate: | CE/ROHS |
| HS Code: | 8530800000 |
| Transportation: | Ocean,Land,Air |
| Port: | Shenzhen |
Product Description
Product Description
200mm Sidewalk Pavement Pedestrian Traffic Signal Light
1. Parameters of 200mm Sidewalk Pavement Pedestrian Traffic Signal Light:
Product model: WDM-RX200-02 is mainly used in driving schools, intersections and other places.
1. Product size: 550*250*60MM
2. Number of lamp beads: 37 reds, 44 greens
3. Luminous diameter: 200MM
4. Lamp beads category: Taiwan Epistar chip lamp beads
5. Red wavelength: 620-625NM
6. Green wavelength: 500-505NM (blue-green) 520-525NM (emerald green)
7. Visible distance: ≥1000M
8. Service life: 100000H
9. Shell material: PC
10. Light angle: 30°
11. Working temperature: -40℃-65℃
12. Protection level: IP53
13. Working voltage: AC85V-265V a small amount of DC12V/24V
14. Rated power: red 8W green 10W
5.200mm Sidewalk Pavement Pedestrian Traffic Signal Light adopts Taiwan Epistar chip lamp beads, high brightness, high refresh rate and long service life.
6.200 type pedestrian traffic lights are designed with outlet holes on the back, which not only facilitates the outlet, but also has a good waterproof effect.
The sunshade cover of 7.200 type pedestrian traffic light is made of PC material, which has good waterproof and dustproof effect and is easy to install.
1. There is a screw on both ends, unscrew the nut above the screw,
2. Put the flat end of the "L" type bracket on the screw according to the hole position and the clamping slot, and tighten the nut. (as the picture shows)
3. The sun visor is installed on the upper part of the lamp. Fold the 3-corner aluminum plate into a circular arc shape, put it on the lamp, and tighten it with the screw to the corresponding hole position.
4. Make two holes on the signal light pole, drill holes according to the signal L-bracket position, use a suitable screw to pass through the light pole, and put the L-shaped bracket on the screw and fix it with the nut. (as the picture shows)
5. Wiring method of 200mm Sidewalk Pavement Pedestrian Traffic Signal Light:
1. Connect to AC220V:
The black line is the common zero line;
The red line is the red man fire line/red countdown fire line;
The green line is Green Man FireWire/Green Countdown FireWire;
6. Details of accessories for 200mm Sidewalk Pavement Pedestrian Traffic Signal Light:
(1) Lamps: 1 set
(2) Instructions: 1 copy
(3) Qualification certificate: 1 copy
(4) L-shaped bracket: 2
(5) Sunshade: 2
1. Parameters of 200mm Sidewalk Pavement Pedestrian Traffic Signal Light:
Product model: WDM-RX200-02 is mainly used in driving schools, intersections and other places.
1. Product size: 550*250*60MM
2. Number of lamp beads: 37 reds, 44 greens
3. Luminous diameter: 200MM
4. Lamp beads category: Taiwan Epistar chip lamp beads
5. Red wavelength: 620-625NM
6. Green wavelength: 500-505NM (blue-green) 520-525NM (emerald green)
7. Visible distance: ≥1000M
8. Service life: 100000H
9. Shell material: PC
10. Light angle: 30°
11. Working temperature: -40℃-65℃
12. Protection level: IP53
13. Working voltage: AC85V-265V a small amount of DC12V/24V
14. Rated power: red 8W green 10W
15. Installation method: vertical installation
5.200mm Sidewalk Pavement Pedestrian Traffic Signal Light adopts Taiwan Epistar chip lamp beads, high brightness, high refresh rate and long service life.
6.200 type pedestrian traffic lights are designed with outlet holes on the back, which not only facilitates the outlet, but also has a good waterproof effect.
The sunshade cover of 7.200 type pedestrian traffic light is made of PC material, which has good waterproof and dustproof effect and is easy to install.
8.200mm pedestrian traffic lights are designed with a fixed copper gong pillar for each lamp, which facilitates the inspection and maintenance of the product.
Three, the physical picture of 200mm pedestrian traffic lights:
1. There is a screw on both ends, unscrew the nut above the screw,
2. Put the flat end of the "L" type bracket on the screw according to the hole position and the clamping slot, and tighten the nut. (as the picture shows)
3. The sun visor is installed on the upper part of the lamp. Fold the 3-corner aluminum plate into a circular arc shape, put it on the lamp, and tighten it with the screw to the corresponding hole position.
4. Make two holes on the signal light pole, drill holes according to the signal L-bracket position, use a suitable screw to pass through the light pole, and put the L-shaped bracket on the screw and fix it with the nut. (as the picture shows)
5. Wiring method of 200mm Sidewalk Pavement Pedestrian Traffic Signal Light:
1. Connect to AC220V:
The black line is the common zero line;
The red line is the red man fire line/red countdown fire line;
The green line is Green Man FireWire/Green Countdown FireWire;
6. Details of accessories for 200mm Sidewalk Pavement Pedestrian Traffic Signal Light:
(1) Lamps: 1 set
(2) Instructions: 1 copy
(3) Qualification certificate: 1 copy
(4) L-shaped bracket: 2
(5) Sunshade: 2
(6) M4 screws: 8
