Mini 125mm Pedestrian Solar Pole Traffic Signal Light

Mini 125mm Pedestrian Solar Pole Traffic Signal Light (with solar panel, pole)
The characteristics of Mini 125mm Pedestrian Solar Pole Traffic Signal Light:
1. The Mini 125mm Pedestrian Solar Pole Traffic Signal Light are suitable for traffic safety education in kindergartens and elementary schools, allowing children to experience it for themselves, which is more intuitive and has more profound educational significance.
2. The Mini 125mm Pedestrian Solar Pole Traffic Signal Light use our self-developed C125MM lamp tube, which is of moderate size and unique shape.
3. The 125mm pedestrian two lights adopt Taiwan Epistar chip lamp beads, ultra-high brightness, eye-catching colors and distinct colors.
4. The Mini 125mm Pedestrian Solar Pole Traffic Signal Light use low-voltage 12V batteries, and the electricity is very safe.
5. The 125mm pedestrian two lights are equipped with a special charger, which can be fully charged in 2 hours, which is very convenient to use.
6. The Mini 125mm Pedestrian Solar Pole Traffic Signal Light are equipped with a remote control, which is easy to operate and easy to use.

The basic parameters of the Mini 125mm Pedestrian Solar Pole Traffic Signal Light:
Product model: WDM-RX125-02-RG
1. Lamp size: 420*220*60MM
2. Tripod size: up to 1.8 meters
3. Lamp bead color: red green
4. Lamp beads category: Taiwan Epistar chip lamp beads
5. Luminous diameter: 125MM
6. Number of lamp beads: 34 reds, 41 greens
7. Red wavelength: 620-625NM
8. Green wavelength: 520-525NM (green) 500-505 (blue-green)
9. Working mode: remote control
10. Installation method: tripod vertical installation
11. Shell material: electrostatic spraying, sheet metal chassis
12. Working voltage: AC85V-265V a small amount of DC12V/24V
13. Working temperature: -40℃~65℃
14. Protection level: IP53
15. Light angle: 30°
16. Visible distance: ≥1000M
17. Service life: 100000H
18. Rated power: ≤ 5W
19. Display mode: Red man static, green man dynamic

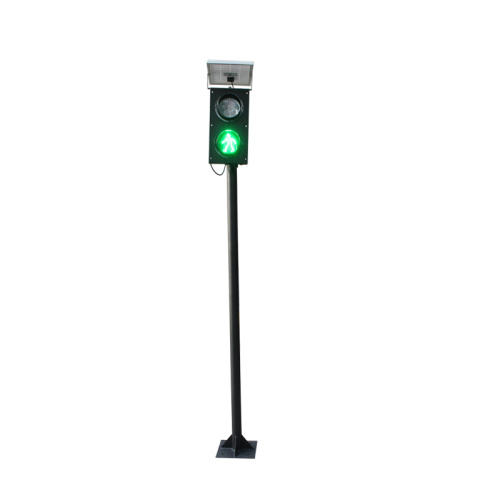

The physical picture of the Mini 125mm Pedestrian Solar Pole Traffic Signal Light:

Installation instructions for Mini 125mm Pedestrian Solar Pole Traffic Signal Light:
1. Pedestrian light installation instructions:
(1) Put the bottom of the pedestrian lights into the tripod, and then tighten the screws on the back of the pedestrian lights.
(2) Pay attention to protection during use to prevent children from falling down and hurting people.
2. Tripod description:
(1) Minimum 1.1 meters
(2) Up to 1.8 meters (When using, the highest recommended is 1.6 meters)
(3) Scalable and retractable
(4) When using it, the center point of the base is firmly pressed with a heavy object

The wiring instructions and accessories details of Mini 125mm Pedestrian Solar Pole Traffic Signal Light:
1. Wiring DC12V/24V:
(1) Black-negative
(2) Red-positive
(3) After the power is turned on, press any key on the remote control to turn on the light, and press the remote control to adjust the mode.
2. Wiring 220V:
(1) Black-zero line
(2) Red-FireWire
(3) After the power is turned on, press any key on the remote control to turn on the light, and press the remote control to adjust the mode.
Special Note: This product is for adult use only, please pay attention to avoid touching by children, the product is removable, to avoid falling and hurting people.
2. Remote controller description:
(1) A: Long press for 3 seconds, the red person is on
(2) B: Long press for 3 seconds, the green person is on
(3) C: Press and hold for 3 seconds, the pedestrian lights automatically cycle
(4) D: Off
3. Accessories details:
(1) Pedestrian lights: 1 (2) Tripod: 1 (3) Battery: 1 (4) Charger:
(5) Remote control: 1
