304 stainless steel fee amount led display screen
- Payment Type:
- T/T, D/P, Paypal, Money Gram, Western Union
- Incoterm:
- EXW
- Delivery Time:
- 5 Days
- Transportation:
- Ocean, Land, Air
- Port:
- Shenzhen
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | guangdong |
|---|---|
| Productivity: | 50000 |
| Supply Ability: | stock |
| Payment Type: | T/T,D/P,Paypal,Money Gram,Western Union |
| Incoterm: | EXW |
| Certificate: | CE/ROHS |
| HS Code: | 8530800000 |
| Transportation: | Ocean,Land,Air |
| Port: | Shenzhen |
Product Description
Product Description
Parameter details of 304 stainless steel fee amount display:
Product name: 304 stainless steel fee amount display
Product model: WDM-FEXS-RG
Service life: 100000H
Total product height: 1700MM
Display size: 912*456MM
Shell material: 304 stainless steel
Number of modules: 9 P3.75 modules
Working temperature: -40℃-65℃
Red wavelength: 620-625NM
System software: asynchronous synchronous system
Best viewing distance: 20-1500M
Green wavelength: 500-505NM
Resolution: 192*96 points
Point spacing: 4.75MM
Service life: 100000H
Working voltage: AC85-265V
Communication interface: RS232 network port
Applicable venue: toll station

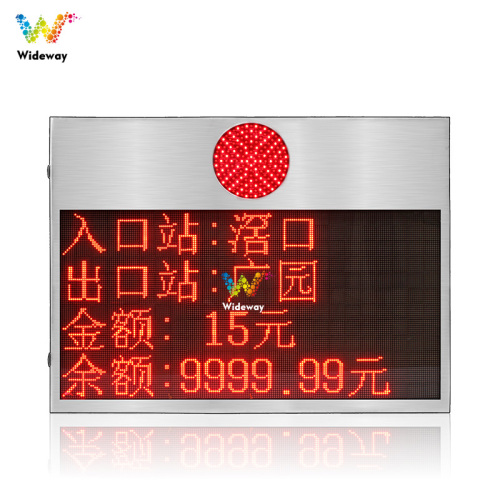

Product display of 304 stainless steel fee amount display:
Installation method of 304 stainless steel fee amount display:
The installation of Fei Xian is very simple. First, fix the base with screws to the place where you need to install. After fixing the base, put the display on the base. Align the holes on the bottom of the display with the holes on the base and tighten the screws. The specific steps are as follows:
(1) Put the chassis on the support frame, align the screw holes, pay attention to the power cord through the outlet hole, to the bottom of the support frame;
(2) Use 6 M12*30 stainless steel screws to fix the chassis and the support frame; fix the bottom with 4 screws on the ground.
304 stainless steel fee display is aging in batches:
In addition to the 304 stainless steel premium display, We also produces other traffic lights:
Solar Warning Light
Taxi Led Display
Solar Warning Flashing Sign
Solar Safety Signs
Solar Warning Sign
Solar Traffic Road Sign
Product name: 304 stainless steel fee amount display
Product model: WDM-FEXS-RG
Service life: 100000H
Total product height: 1700MM
Display size: 912*456MM
Shell material: 304 stainless steel
Number of modules: 9 P3.75 modules
Working temperature: -40℃-65℃
Red wavelength: 620-625NM
System software: asynchronous synchronous system
Best viewing distance: 20-1500M
Green wavelength: 500-505NM
Resolution: 192*96 points
Point spacing: 4.75MM
Service life: 100000H
Working voltage: AC85-265V
Communication interface: RS232 network port
Applicable venue: toll station
Product display of 304 stainless steel fee amount display:
Installation method of 304 stainless steel fee amount display:
The installation of Fei Xian is very simple. First, fix the base with screws to the place where you need to install. After fixing the base, put the display on the base. Align the holes on the bottom of the display with the holes on the base and tighten the screws. The specific steps are as follows:
(1) Put the chassis on the support frame, align the screw holes, pay attention to the power cord through the outlet hole, to the bottom of the support frame;
(2) Use 6 M12*30 stainless steel screws to fix the chassis and the support frame; fix the bottom with 4 screws on the ground.
304 stainless steel fee display is aging in batches:
In addition to the 304 stainless steel premium display, We also produces other traffic lights:
Solar Warning Light
Taxi Led Display
Solar Warning Flashing Sign
Solar Safety Signs
Solar Warning Sign
Solar Traffic Road Sign
