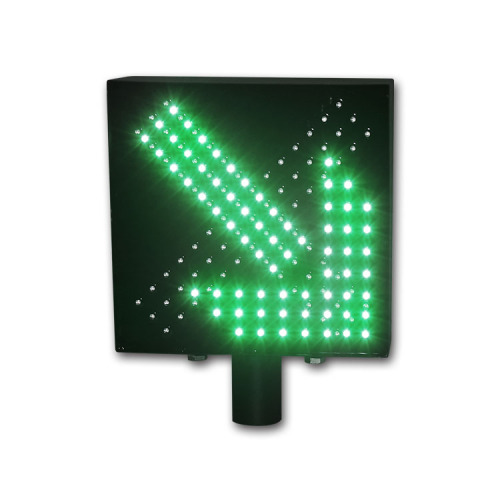

Red Cross Green Arrow Toll Station Traffic Light
- Payment Type:
- T/T, D/P, Paypal, Money Gram, Western Union
- Incoterm:
- EXW
- Delivery Time:
- 5 Days
- Transportation:
- Ocean, Land, Air
- Port:
- Shenzhen
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | guangdong |
|---|---|
| Productivity: | 50000 |
| Supply Ability: | stock |
| Payment Type: | T/T,D/P,Paypal,Money Gram,Western Union |
| Incoterm: | EXW |
| Certificate: | CE/ROHS |
| HS Code: | 8530800000 |
| Transportation: | Ocean,Land,Air |
| Port: | Shenzhen |
Product Description
Product Description
Parameter details of 270mm single-sided red cross and green arrow 45° Toll Station Traffic Light:
1. Product size: 270*270MM
2. Number of lamp beads: 45 red, 52 green
3. Lamp bead category: Taiwan Epistar chip lamp bead
4. Red wavelength: 620-625NM
5. Green wavelength: 500-505NM (emerald green)
6. Shell material: electrostatic spraying, sheet metal chassis
7. Working temperature: -40℃-65℃
8. Protection level: IP65
9. Working voltage: AC85V-265V
10. Rated power: red 6W, green 8W
11. Service life: 100000H
12. Visible distance: ≥1000M
2. The 270mm single-sided red cross and green arrow 45° Toll Station Traffic Light is designed with outlet holes at the bottom, which not only facilitates the outlet, but also has a good waterproof effect.
3. The 270mm single-sided red cross and green arrow 45° Toll Station Traffic Light adopts an integrated box, which makes the product have better waterproof effect
4. The 270mm single-sided red cross and green arrow 45° Toll Station Traffic Light is designed with a key switch on the back, which facilitates the inspection and maintenance of the product.
(1) Align the holes on both ends of the bottom seat with the holes on the bottom of the lamp
(2) Put the shrapnel/gasket of M12 into the screw of M12 respectively
(3) The screw rod passes through the base and is screwed into the holes on the bottom of the lamp.
(4) In order to prevent the damage to the lamp by shaking, it must be tightened (as shown in Figure 2)
(5) Finally, put the whole lamp part into the pole (the line needs to pass through the pole)
Customized Led Display
Led Pedestrian Traffic Light
Led Traffic Warning Light
125mm Traffic Light
Customized Traffic Signal Light
Solar Guidance Signs
Led Speed Limit Sign
1. Product size: 270*270MM
2. Number of lamp beads: 45 red, 52 green
3. Lamp bead category: Taiwan Epistar chip lamp bead
4. Red wavelength: 620-625NM
5. Green wavelength: 500-505NM (emerald green)
6. Shell material: electrostatic spraying, sheet metal chassis
7. Working temperature: -40℃-65℃
8. Protection level: IP65
9. Working voltage: AC85V-265V
10. Rated power: red 6W, green 8W
11. Service life: 100000H
12. Visible distance: ≥1000M
Features of 270mm single-sided red cross and green arrow 45° Toll Station Traffic Light:
1. The 270mm single-sided red cross and green arrow 45° Toll Station Traffic Light uses Taiwan Epistar chip beads, high brightness, high refresh rate, and long service life.2. The 270mm single-sided red cross and green arrow 45° Toll Station Traffic Light is designed with outlet holes at the bottom, which not only facilitates the outlet, but also has a good waterproof effect.
3. The 270mm single-sided red cross and green arrow 45° Toll Station Traffic Light adopts an integrated box, which makes the product have better waterproof effect
4. The 270mm single-sided red cross and green arrow 45° Toll Station Traffic Light is designed with a key switch on the back, which facilitates the inspection and maintenance of the product.
Installation method of 270mm single-sided red cross and green arrow 45° Toll Station Traffic Light:
1. The installation method of the base:(1) Align the holes on both ends of the bottom seat with the holes on the bottom of the lamp
(2) Put the shrapnel/gasket of M12 into the screw of M12 respectively
(3) The screw rod passes through the base and is screwed into the holes on the bottom of the lamp.
(4) In order to prevent the damage to the lamp by shaking, it must be tightened (as shown in Figure 2)
(5) Finally, put the whole lamp part into the pole (the line needs to pass through the pole)
Wiring method of 270mm single-sided red cross and green arrow 45° Toll Station Traffic Light:
Customized Led Road StudCustomized Led Display
Led Pedestrian Traffic Light
Led Traffic Warning Light
125mm Traffic Light
Customized Traffic Signal Light
Solar Guidance Signs
Led Speed Limit Sign
