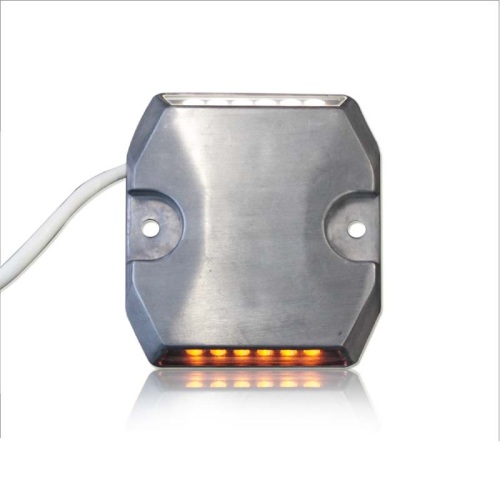

DC12V or 24V LED wired aluminum road stud
- Payment Type:
- T/T, D/P, Paypal, Money Gram, Western Union
- Incoterm:
- FOB, CIF, EXW
- Delivery Time:
- 7 Days
- Transportation:
- Ocean, Land
- Port:
- Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | guangdong |
|---|---|
| Productivity: | 50000 |
| Supply Ability: | stock |
| Payment Type: | T/T,D/P,Paypal,Money Gram,Western Union |
| Incoterm: | FOB,CIF,EXW |
| Certificate: | CE/ROHS |
| HS Code: | 8530800000 |
| Transportation: | Ocean,Land |
| Port: | Shenzhen |
Detailed parameters of DC12V or 24V LED wired aluminum road stud:
1. Product model: WDM-DD07-L
2. Product size: 100*105*19MM
3. Color of lamp beads: red, yellow, blue, green and white
4. Number of lamp beads: 12
5. Red wavelength: 620-625NM
6. Yellow wavelength: 590-595NM
7. Blue wavelength: 470-475NM
8. Green wavelength: 520-525NM
9. White brightness: 18900-22600MCD
10. Protection grade: IP68
11. Shell material: cast aluminum
12. Working voltage: DC12V/24V
14. Rated power: 0.5W
15. Working temperature: -40℃~60℃
16. Working mode: Chang Liang
The cast aluminum active road stud is a kind of road stud. It is set along both sides of the road. It is used to indicate the edge of roads and tunnels at night or in rain and fog. It consists of a housing, LEDs, wires, and control devices. It can use solar energy. It is powered by the board, and it can be used with alternating current. It can rely on active lighting only, and it can be combined with passive reflective visual induction facilities. The working mode is always on or flashing. The active road studs used in tunnels have oil resistance requirements and require a large number of LEDs. The housing can be a plastic housing. The active road stud shell used for pavement has pressure resistance requirements, and it is mostly a cast aluminum shell, which combines active light emission with reflective light.
1. The cast aluminum active spike is a type of spike, which is set along both sides of the tunnel and is used to indicate the edges of roads and tunnels at night or in rain and fog.
2. The cast aluminum active road studs adopt super-bright Taiwan wafer chip lamp beads. The color is eye-catching and the color is clear. It has good visual performance, which can attract the attention of the driver, reduce the speed, and improve the driving safety on the road. .
3. The cast aluminum active spikes are available in a variety of colors, and the color of the lamp beads can be customized according to customer requirements.
4. The cast aluminum active spikes have good waterproof and dustproof effects, and the protection level can reach IP68.
(1) The cast aluminum active spikes are generally installed on the side wall of the tunnel cable trench. First, use a ruler to determine the installation position. The height is designed according to the drawing to ensure that the longitudinal direction is on a straight line and the horizontal and horizontal alignments are at the same time. According to the positioning of the holes on both sides of the active spike, punching, and the rubber plug smashing into the drilled hole, the middle of the two holes is drilled through the wall hole? 8 or? 10 according to the diameter of the active spike.
(2) The ratio of glue is 1: 0.7 for glue A and glue B, then add 15%-30% of cement as filler (the glue is not easy to stir too much at one time, enough for one person to stick 50-70 spikes) glue). The colloid should be stirred evenly (the hand drill is equipped with a stirrer) and the color is consistent. Each active spike requires about 30-40 grams of glue.
(3) The surface of the installation location should be cleaned. Use a batch knife of about 30-40 grams of glue and apply it to the back of the spike. Put the active spike wire through the side wall of the cable trench (pre-punched holes) and place it At the location, install self-tapping and tighten with a Phillips screwdriver on both sides.
(4) After installing the road studs, scrape the glue around the road studs with a batch knife to clean them up.
(5) After the installation of the road studs, after receiving the pre-arranged main line, connect the control box and test whether there is a short circuit with a universal meter. If there is no problem, you can connect the main power.
Precautions:
Do not touch the vicinity of the lamp with your hands. Avoid glue sticking to the housing and affecting the luminous effect! It is forbidden to install active spikes with water, moisture and oil stains (easy to fall off). 4 hours after installation, evacuate the road cone.
