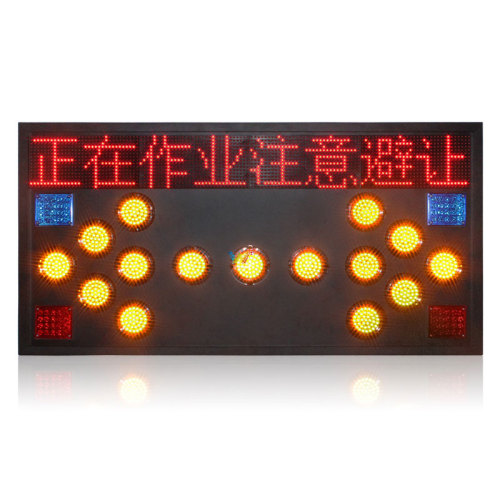

vehicle-mounted guide arrow board with display

Installation method of vehicle-mounted guide arrow board with display:
1. Hoop installation:
(1) Pass the M10 screw through the aluminum groove on the back of the product, then put the holes at both ends of the hoop into the screws at both ends, and then screw the nut on.
2. Fix the hoop in the middle of the aluminum trough, and tighten the nuts at both ends.

Details of the parameters of the vehicle-mounted guide arrow board with display:
1400x700 vehicle-mounted guide card with module
1. Product size: 1400**700*95MM
2. Lamp bead color: yellow
3. Pixel tube name: C88-40Y
4. Number of pixel tubes: 15
5. Number of lamp beads: C88: 40 pcs/tube*15 red/blue each 20 pcs*4
6. Display module: 4 P10 single red modules
7. Lamp beads category: Taiwan Epistar chip lamp beads
8.Yellow wavelength: 590-595NM
9. Red wavelength: 620-625NM
10. Blue wavelength: 470-475NM
11. Shell material: aluminum plate
12. Working voltage: DC8V-40V
13. Working temperature: -40℃~65℃
14. Protection level: IP65
15. Control method: manual button control
16. Commonly used hoop installation: 76MM hoop
17. Visual distance: ≥1000M
18. Service life: 100000H
19. Working mode: left arrow, right arrow, left and right arrow

The characteristics of the vehicle-mounted guide arrow board with display:
1. Guangxi vehicle-mounted guidance signs with display screens are mainly used for highway intersections, bridges, bends, highways and other construction sections with hidden safety hazards to remind drivers or pedestrians to pay attention, which can effectively serve as a warning to avoid traffic accidents and An accident happened.
2. Guangxi's vehicle-mounted guide card with display is composed of 15 C88-40Y pixel tubes, and each lamp tube is potted with three-proof paint
3. Guangxi's vehicle-mounted oriented card with display uses Taiwan Epistar chip lamp beads, high brightness, high refresh rate, and long service life.
4. Guangxi's vehicle-mounted oriented card housing with display adopts self-moulded aluminum plate, inlaid packaging, and firm packaging.
5. Engineering-grade 3M reflective film is used at the side seams of the vehicle-mounted guide plate with a display screen in Guangxi, which has the best reflective and waterproof effect.
6. Guangxi's vehicle-mounted oriented card controller with display screen uses a 15-light controller to synchronize the LED display panel.
7. Guangxi has a 4-speed P10 display module on the vehicle-mounted guide card with a display screen, and the text that appears can be set as required, which is concise and convenient.
8. Guangxi has a frame around the vehicle-mounted guide card with a display screen, which is better for waterproofing.

Manufacturer of the vehicle-mounted guide arrow board with display:
Videmei Optoelectronics Co., Ltd. is a professional manufacturer of car-oriented brand with display in Guangxi. The company adopts fully automatic AI equipment and assembly line production. The car-oriented brand produced has the characteristics of high output, good quality and fast delivery. Welcome Come to our Weimeimei to investigate and exchange.

In addition to vehicle-mounted oriented cards with display screens, Weimeimei also produces other vehicle-mounted oriented cards:
