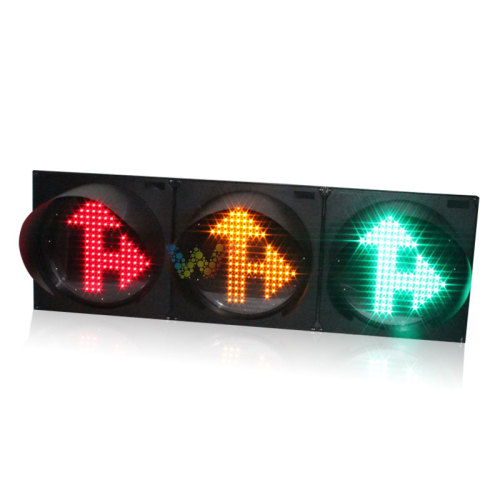

Road Safety Intelligent 3 color arrow traffic light

What are the materials of the Road Safety Intelligent 3 color arrow traffic light?
Due to the weather, there are some areas in China that are hot in summer and cold in winter.
The external conditions are very harsh, the principle of thermal expansion and contraction,
In northern cities in China, only aluminum traffic light housings can be used.
And the PC plastic case that can be used in the south,
Therefore, different materials of aluminum shell and plastic shell have appeared in China.

Road Safety Intelligent 3 color arrow traffic light working principle:
The principle of the 400mm Arrow LED Traffic Signal Light is to control them according to certain control procedures, implement time isolation on the lighting time, and display the red, yellow and green lights at the intersections to cycle and direct the traffic on the left lane Traffic, implementing isolation in time to achieve traffic control. Both the red and green lights will show a countdown, and the yellow light will be on for about 3-5 seconds.

Road Safety Intelligent 3 color arrow traffic light parameters:
1. Basic parameters of the 400mm Arrow LED Traffic Signal Light:
Product model: WDM-JD400-3-S&R-RYG
1. Product size: 1410*470*140MM
2. Lamp bead color: red yellow green
3. Lamp beads category: Taiwan Epistar chip lamp beads
4. Luminous diameter: 400MM
5. Number of lamp beads: red yellow green 92pcs each color
6. Red wavelength: 620-625NM
7. Green wavelength: 500-505NM (blue-green)
8. Installation method: horizontal or vertical
9. Shell material: PC
10. Working voltage: AC85V-265V a small amount of DC12V/24V
11. Working temperature: -40℃~65℃
12. Protection level: IP53
13. Light angle: 30°
14. Visible distance: ≥1000M
15. Service life: 100000H
16. Rated power: 8W each for red and green

Three, Road Safety Intelligent 3 color arrow traffic light feature:
1. Green energy, economical and environmental protection, no harmful substances, no emission of pollutants.
2. The LED adopts Taiwan Epistar chips, with a service life of ≥100000 hours, high brightness, unique optical system, uniform chromaticity, good warning effect, and slow light attenuation.
3. The protective layer of the shell and the connecting parts has uniform color, no scratches, no cracks, no exposed substrate and other defects, and its physical and chemical performance indicators meet the requirements of relevant national and industry standards;
4. The front and back of the shell are designed with a combination of snap fasteners, which is convenient for opening the lamp for maintenance and repair;

5. Low power consumption, large viewing angle, super high brightness, long viewing distance, long working time.
6. Sturdy and durable. Stable and reliable, high protection level. Impact resistance, aging resistance, corrosion resistance. waterproof. Easy to install.
7. Comply with GB/14887-2003 and relevant international standards
8. Product warranty ≥ 2 years;
9. Beautiful appearance;

Fourth, Road Safety Intelligent 3 color arrow traffic light installation instructions:
1. There is a screw on both ends, unscrew the nut above the screw,
2. Put the flat end of the "L" type bracket on the screw according to the hole position and the slot,
3. The sun visor is installed on the upper part of the lamp. Fold the 3-corner aluminum plate into a circular arc shape, put it on the lamp, and tighten it with the screw to the corresponding hole position.
4. Make two holes on the signal light pole, drill holes according to the signal L-bracket position, use a suitable screw to pass through the light pole, and put the L-shaped bracket on the screw and fix it with the nut.

In addition to the Road Safety Intelligent 3 color arrow traffic light, we also produces other traffic lights:
Led Pedestrian Traffic Signal Light
Solar Led Traffic Warning Light
Led Traffic Warning Light
125mm Led Traffic Signal Light
125mm Mini Traffic Light
Customized Traffic Signal Light

Application for the Road Safety Intelligent 3 color arrow traffic light:
