300mm pedestrian cross signal countdown timer traffic light
- Payment Type:
- T/T, D/P, Paypal, Money Gram, Western Union
- Incoterm:
- EXW
- Delivery Time:
- 5 Days
- Transportation:
- Ocean, Land, Air
- Port:
- Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | guangdong |
|---|---|
| Productivity: | 50000 |
| Supply Ability: | stock |
| Payment Type: | T/T,D/P,Paypal,Money Gram,Western Union |
| Incoterm: | EXW |
| Certificate: | CE/ROHS |
| HS Code: | 8530800000 |
| Transportation: | Ocean,Land,Air |
| Port: | Shenzhen |
1. Parameters of 300mm pedestrian cross signal countdown timer traffic light:
Product model: WDM-RX300-2-RG-1.0 is mainly used in driving schools, intersections and other places.
1. Product size: 1050*350*110mm (without decorative edge)
2. Number of lamp beads: 65 reds, 120 greens
3. Luminous diameter: 300MM
4. Lamp beads category: Taiwan Epistar chip lamp beads
5. Red wavelength: 620-625NM
6. Green wavelength: 500-505NM (blue-green) 520-525NM (emerald green)
7. Visible distance: ≥1000M
8. Service life: 100000H
9. Shell material: PC
10. Light angle: 30°
11. Working temperature: -40℃-65℃
12. Protection level: IP53
13. Working voltage: AC85V-265V a small amount of DC12V/24V
14. Rated power: red 18W green 22W
15. Installation method: vertical installation
Features of the 300mm pedestrian cross signal countdown timer traffic light:
1. Cross-country pedestrian lights with countdown adopt Taiwan Epistar chip lamp beads, high brightness, high refresh rate, and long service life.2. The crosswalk pedestrian light with countdown has a cable outlet on the back, which is not only convenient for the cable, but also has a good waterproof effect.
3. The sunshade cover with countdown for crosswalk pedestrian lights is made of PC material, which has good waterproof and dustproof effect and simple installation.
4. Every lamp and countdown of pedestrian crossing lights with cross-country adopts a snap-type design, which facilitates the inspection and maintenance of products.

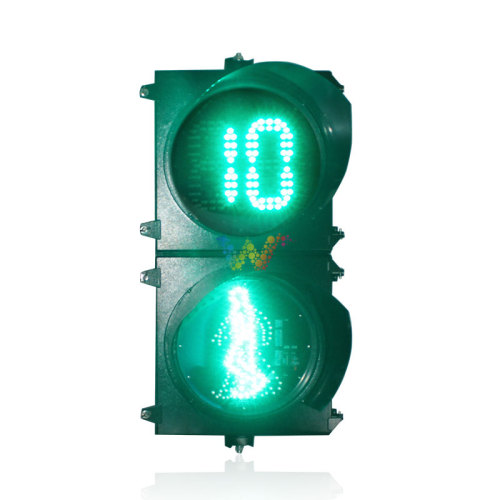

Physical picture of 300mm pedestrian cross signal countdown timer traffic light:
Installation method: vertical installation
1. There is a screw on both ends, unscrew the nut above the screw,
2. Put the flat end of the "L" type bracket on the screw according to the hole position and the clamping slot, and tighten the nut. (as the picture shows)
3. The sun visor is installed on the upper part of the lamp. Fold the 3-corner aluminum plate into a circular arc shape, put it on the lamp, and tighten it with the screw to the corresponding hole position.
4. Make two holes on the signal light rod, drill holes according to the signal L-bracket holes, use a suitable screw to pass through the light rod, and put the L-shaped bracket on the screw and fix it with the nut. (as the picture shows)
Note 2 points,
1. The sun visor is on the upper part of the lamp
2. Outlet hole facing down (as shown)
1. Connect to AC220V:
The black line is the common zero line;
The red line is the red light fire line;
The green line is the green light fire line;
The yellow line is the yellow light fire line;
6. Details of accessories for countdown pedestrian crossing lights with countdown:
(1) Lamps: 1 set
(2) Instructions: 1 copy
(3) Qualification certificate: 1 copy
(4) L-shaped bracket: 2
(5) Sunshade: 3
(6) M4 screws: 16
