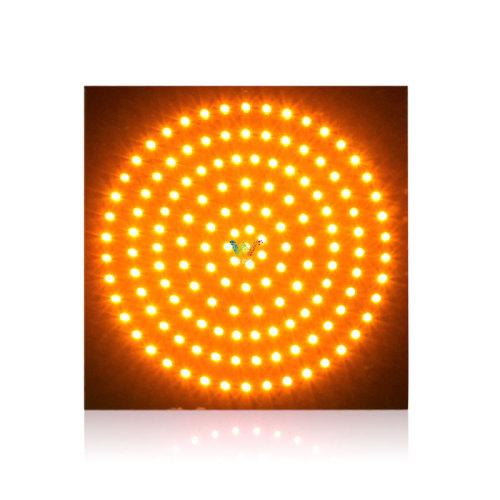

yellow PCB board 300mm traffic light parts

Features for the yellow PCB board 300mm traffic light parts:

yellow PCB board 300mm traffic light parts parameter details:
1. Product size: 290*290mm
2. Number of lamp beads: R/Y:144pcs、G:108pcs
3. Luminous diameter: 300MM
4. Lamp beads category: Taiwan Epistar chip lamp beads
5. Red wavelength: 620-625NM
6. Yellow wavelength: 590-595NM
7. Green wavelength: 500-505NM (blue-green) 520-525NM (emerald green)
8. Service life: 100000H
9. Shell material: PC
10. Light angle: 30°
11. Working temperature: -40℃-65℃
12. Protection level: IP53
13. Working voltage: AC85V-265V a small amount of DC12V/24V
14. Rated power: red and yellow 18W green 22W
15. Installation method: horizontal or vertical

Characteristics of the yellow PCB board 300mm traffic light parts :
The traffic signal light board we gave to Uzbekistan this time is a kind of countdown light board. Its display method is red double eight countdown, then green double eight countdown, and then the entire disc shows yellow, which is inside There are three states, you can work separately, this is the most common, the most core countdown traffic signal light board.
Let’s first introduce the number of LED lamp beads of this kind of lamp board. The number of red countdown LEDs is 88, the number of green countdown LEDs is also 88, and then the number of yellow is 134. When the yellow is on, it is one Disc, the whole disc is bright
The driving method of Uzbekistan's countdown traffic signal lamp board is learning type. What is the learning type countdown driving method? Simply put, it is a traffic signal. Set the time according to the pattern of the entire intersection. Of course, this set time refers to the entire traffic signal, set the time, and then set the time for the pedestrian traffic signal. Good time, after running for two cycles, this countdown traffic signal light board starts to work, this is the principle of learning type countdown. Now Uzbekistan is also just beginning to do the basic construction of these countries, so the Belt and Road construction It also brought us a very good dividend. We are doing a lot of traffic lights in Uzbekistan, Kyrgyzstan, Tajikistan, etc. The country has parts for export, and there are also a whole group of traffic lights for export, although the unit price will not It is too high, but the amount is relatively large, because for their country, construction has just begun, so many things are not so demanding, then we are also very good at digesting our production capacity

yellow PCB board 300mm traffic light parts manufacturer:
Shenzhen Wide Way Optoelectronics Co., Ltd. is a professional manufacturer of traffic lights. All traffic lights in Guangxi come from our Shenzhen Wide Way Optoelectronics Co., Ltd. The traffic signals produced by our company are all produced by automated machinery.
Shenzhen Wide Way Optoelectronics Co., Ltd. has been working as a traffic light for about 17 years. In the middle of these 17 years, from the beginning of the technical portfolio and sales portfolio, to the current technical research and development team, sales team, and engineering design team, we have our own Of the fully automated production equipment production machines, have their own large-scale factory buildings, these people have their own national high-tech enterprises, and have the contract and trustworthy enterprise issued by the national Shenzhen. The company has always been working hard Go to work and believe that we can do better in the future,
