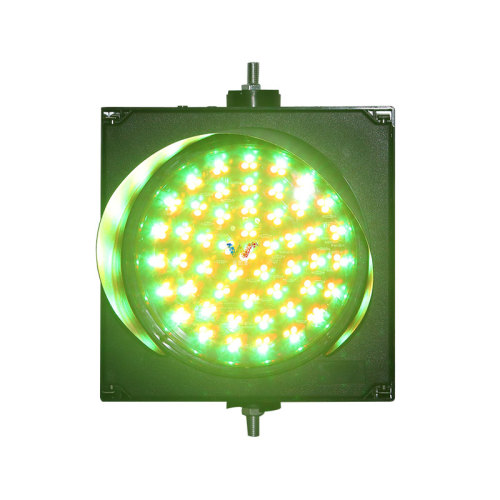

200mm mix color LED replacement traffic light parts
- Payment Type:
- T/T, D/P, Paypal, Money Gram, Western Union
- Incoterm:
- EXW
- Delivery Time:
- 5 Days
- Transportation:
- Ocean, Land, Air
- Port:
- Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | guangdong |
|---|---|
| Productivity: | 50000 |
| Supply Ability: | stock |
| Payment Type: | T/T,D/P,Paypal,Money Gram,Western Union |
| Incoterm: | EXW |
| Certificate: | CE/ROHS |
| HS Code: | 8530800000 |
| Transportation: | Ocean,Land,Air |
| Port: | Shenzhen |
What is the 200mm mix color LED replacement traffic light parts?
Shenzhen Wide Way Optoelectronics Co., Ltd. is located in Dongguan, a city known as the world factory in the core area of the Pearl River Delta. The company has a strong R&D team and a complete after-sales service system. It has established a production base of up to 5,000 square meters. The company has been committed to For the development, design, production and sales of specialized intelligent transportation and traffic safety facilities products. All products have passed the inspection of the Traffic Safety Product Quality Supervision and Inspection Center and the General Engineering Supervision and Inspection Center. The company has attracted many design management elites with generous treatment and a very democratic corporate culture. Based on the business philosophy of "serving customers with professional technology, perfect process management, excellent product quality and integrity", the company strives for excellence and strives for excellence. Create high-quality LED serialized traffic.
The parameters for the 200mm mix color LED replacement traffic light parts:
Material:pc
LED QTY:50pcs each color
Lamp diameter:200mm
LED luminous:red : 620-630nm , green :500-505nm
Wave length:4000-5000mcd
Life span:3-5 years
NET Weight:6KG
visual angle:30 °C
Visual distance:800m
Warranty:2years
Working temperature:-40℃--+50℃
LED type:Taiwan Epistar
The characteristics of the 200mm mix color LED replacement traffic light parts:
1. bi-color red green 200mm decorative flashing traffic signal light adopts Taiwan wafer chip lamp beads, high brightness, high refresh rate and long service life.
2. The bi-color red green 200mm decorative flashing traffic signal light has a cable outlet on the back, which not only facilitates cable outlet, but also has a good waterproof effect.
3.bi-color red green 200mm decorative flashing traffic signal light sunshade is made of PC material, which has better waterproof and dustproof effect and easy installation.
4. bi-color red green 200mm decorative flashing traffic signal light is installed by L-shaped bracket, which is very convenient to assemble.
The installation of the 200mm mix color LED replacement traffic light parts:
Installation: horizontal installation
(1) A screw is left at both ends. Unscrew the nut on the screw.
(2) Put the flat end of the "L" bracket on the screw according to the hole position and the slot, and tighten the nut. (as the picture shows)
(3) The sun cap is installed on the upper part of the lamp, and the sun cap is put on the lamp, and the screw is aligned with the corresponding hole and tightened.
(4) Make 2 holes on the signal lamp post, punch holes according to the position of the L bracket of the signal, use a suitable screw to penetrate the lamp post, cover the L-shaped bracket on the screw, and fix it with a nut. (as the picture shows)
Installation: vertical installation
The procedure for vertical installation is the same as for horizontal installation.
Note 2 points:
1. The sun cap is on the top of the lamp 2. The outlet hole is facing downward (as shown in the figure):
200mm mix color LED replacement traffic light parts wiring:
1.Wiring DC12V / 24V:
(1) Red and black line-red cross negative pole;
(2) Red wire-positive electrode;
(3) Green line-negative pole of green arrow;
2. Connected to 220V:
(1) Black line-common zero line;
(2) Red Line-Red Cross Fire Line;
(3) Green Line-Green Arrow Fire Line;
Details of accessories for the bi-color red green 200mm flashing traffic signal light:
(1) Lighting: 1 set
(2) Sunshade: 1
(3) L-shaped bracket: 2
(4) Instructions: 1 copy
(5) Certificate of conformity: 1 copy
(6) M3 screws: 4
