wholesale solar 200mm yellow flashing traffic warning light

wholesale solar 200mm yellow flashing traffic warning light

Solar energy is widely used in highway intersections, bends, bridges and other dangerous sections with potential safety hazards, reminding drivers or pedestrians to pay attention to safety, and can effectively serve as a warning to avoid traffic accidents. Highway construction is the window of civilization in every region, and people who pass by from north to south across the country will see it. Choosing a beautiful-looking solar warning light can not only serve as a warning but also beautify the local environment. If you don’t consider its appearance, you can install a warning light that is not beautiful, like an iron box, in a conspicuous place on the road, just like a man in suit and leather shoes wearing an old hat, it looks very uncoordinated. It will give the passing guests a backward and vulgar impression. Therefore, in choosing to install solar yellow flashing lights, in addition to considering the quality of each functional device, its appearance is equally important. Although this thing is small, it will also mark the appearance of a modern city, and it will also show the image of traffic management in the region.

wholesale solar 200mm yellow flashing traffic warning light
1. Basic parameters of the 200mm Red Green Led Mini Traffic Signal Light:
Product model: WDM-JD200-2-RG
1. Product size: 500*250*155MM
2. Lamp bead color: red green
3. Lamp beads category: Taiwan Epistar chip lamp beads
4. Luminous diameter: 200MM
5. Number of lamp beads: 90 for red and green
6. Red wavelength: 620-625NM
7. Green wavelength: 500-505NM (blue-green)
8. Installation method: horizontal or vertical
9. Shell material: PC
10. Working voltage: AC85V-265V a small amount of DC12V/24V
11. Working temperature: -40℃~65℃
12. Protection level: IP53
13. Light angle: 30°
14. Visible distance: ≥1000M
15. Service life: 100000H
16. Rated power: 8W each for red and green

Characteristics of the wholesale solar 200mm yellow flashing traffic warning light:
1. The 200mm full-panel red green traffic lights use Taiwan wafer chip beads, high brightness, high refresh rate, and long service life.
2. The outlet of the 200mm red and green traffic lights is designed with outlet holes, which not only facilitates the outlet, but also has a good waterproof effect.
3. The sunshade cover of the 200mm full-panel red and green lights is made of PC material, which has good waterproof and dustproof effect and simple installation.
4. The 200mm full-panel red and green traffic lights are installed with an L-shaped bracket, which is very convenient for assembly.

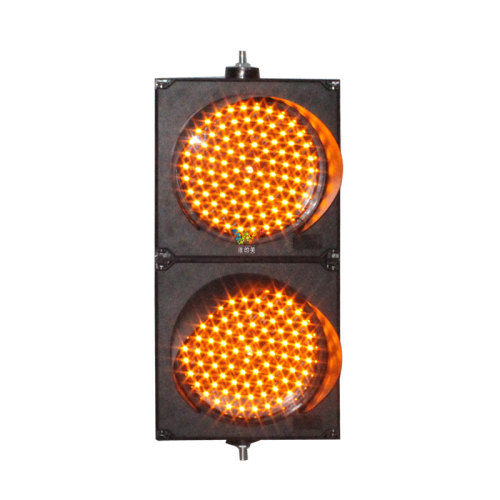

Three, the physical picture of the 200mm traffic lights:

Installation method of the wholesale solar 200mm yellow flashing traffic warning light:
Installation method: horizontal installation
(1) A screw is left at both ends, unscrew the nut above the screw,
(2) Put the flat end of the "L" bracket on the screw according to the hole position and the clamping slot, and tighten the nut. (as the picture shows)
(3) The sun visor is installed on the upper part of the lamp, put the sun visor on the lamp, and tighten the screws to the corresponding holes.
(4) Drill two holes on the signal light pole, drill holes according to the signal L-bracket position, use a suitable screw to pass through the light pole, and put the L-shaped bracket on the screw and fix it with the nut. (as the picture shows)
Installation method: vertical installation
The steps of vertical installation and horizontal installation are the same, just put it upright, pay attention to 2 points:
1. The sun visor is on the upper part of the lamp
2. The outlet hole is facing down (as shown in the figure):
