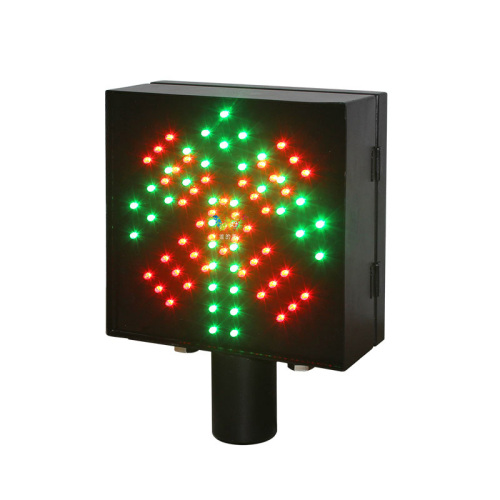

red cross green arrow stop go traffic lights
- Payment Type:
- T/T, D/P, Paypal, Money Gram, Western Union
- Incoterm:
- EXW
- Delivery Time:
- 5 Days
- Transportation:
- Ocean, Land, Air
- Port:
- Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | guangdong |
|---|---|
| Productivity: | 50000 |
| Supply Ability: | stock |
| Payment Type: | T/T,D/P,Paypal,Money Gram,Western Union |
| Incoterm: | EXW |
| Certificate: | CE/ROHS |
| HS Code: | 8530800000 |
| Transportation: | Ocean,Land,Air |
| Port: | Shenzhen |
Features for the 200mm red cross green arrow stop go traffic lights:
1. Red fork and green arrow lane indicator lights are widely used in toll stations, parking lots and other lanes to indicate vehicle passage and prohibition.
2. The product has passed the inspection of the Traffic Safety Product Quality Supervision Center of the Ministry of Public Security and meets the requirements of the People's Republic of China GB14887-2011.
3. Double sealing, enclosure protection grade: IP55.
Parameter details of the 200mm red cross green arrow stop go traffic lights:
1. Product size: 200*200MM2. Number of lamp beads: 45 red, 36 green
3. Lamp bead category: Taiwan Epistar chip lamp bead
4. Red wavelength: 620-625NM
5. Green wavelength: 500-505NM (emerald green)
6. Shell material: electrostatic spraying, sheet metal chassis
7. Working temperature: -40℃-65℃
8. Protection level: IP65
9. Working voltage: AC85V-265V
10. Rated power: red 6W, green 8W
11. Service life: 100000H
12. Visible distance: ≥1000M
Features of 200mm red cross green arrow stop go traffic lights:
1. The 270mm single-sided red cross and green arrow 45° Toll Station Traffic Light uses Taiwan Epistar chip beads, high brightness, high refresh rate, and long service life.2. The 270mm single-sided red cross and green arrow 45° Toll Station Traffic Light is designed with outlet holes at the bottom, which not only facilitates the outlet, but also has a good waterproof effect.
3. The 270mm single-sided red cross and green arrow 45° Toll Station Traffic Light adopts an integrated box, which makes the product have better waterproof effect
4. The 270mm single-sided red cross and green arrow 45° Toll Station Traffic Light is designed with a key switch on the back, which facilitates the inspection and maintenance of the product.
Installation method of 200mm red cross green arrow stop go traffic lights:
1. The installation method of the base:(1) Align the holes on both ends of the bottom seat with the holes on the bottom of the lamp
(2) Put the shrapnel/gasket of M12 into the screw of M12 respectively
(3) The screw rod passes through the base and is screwed into the holes on the bottom of the lamp.
(4) In order to prevent the damage to the lamp by shaking, it must be tightened (as shown in Figure 2)
(5) Finally, put the whole lamp part into the pole (the line needs to pass through the pole)
