Mini 125mm Toy Lamp Arrow Board Module Cluster
- Payment Type:
- T/T, D/P, Paypal, Money Gram, Western Union
- Incoterm:
- EXW
- Delivery Time:
- 5 Days
- Transportation:
- Ocean, Land, Air, By express
- Port:
- Shenzhen
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | guangdong |
|---|---|
| Productivity: | 50000 |
| Supply Ability: | stock |
| Payment Type: | T/T,D/P,Paypal,Money Gram,Western Union |
| Incoterm: | EXW |
| Certificate: | CE/ROHS |
| HS Code: | 8530800000 |
| Transportation: | Ocean,Land,Air,By express |
| Port: | Shenzhen |
Product Description
Product Description

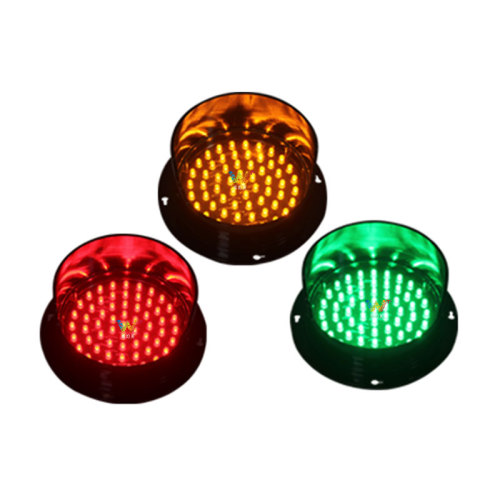

Mini 125mm Toy Lamp Arrow Board Module Cluster
1.The traffic light module is made with clear lens through second distribution of light intensity, it features high penetrability and anti-UV and can meet the luminous intensity and visual angle requirements to the ulmost extent.
2.The traffic light module has been tested and approved by traffic products test centre of the ministry of public security CE standard are also availbale in our company.
3.Application: wider intersection.
4.Easy to repair.
5.The traffic light module is exquisitely made with novelty design and looks quite wonderful
6.The newest integrated arrow traffic lights always adopts high intensity cold-rolled steel, it is perfect way to combine with other products.
7.Embedded led traffic signal light pole.
8.Installation way : Horizontely or vertically.
Mini 125mm Toy Lamp Arrow Board Module Cluster
Product name :Mini 125mm Toy Lamp Arrow Board Module Cluster
Lamp diameter:125mm
Material :PC
LED QTY:60pcs
Voltage:DC12v/24v
Power:3.6w
visual distance:>1000m
wave length:620-630nm
housing diameter:16mm
Application:school teaching , sport playground , decortaion ,etc
Certificate:CE,ROhs
LED Color:GREEN
warranty:2 years
lifespan :3-5years
The details of the Mini 125mm Toy Lamp Arrow Board Module Cluster:
Product model: WDM-C125 Mainly used in schools, youth palaces, playgrounds, children's playgrounds
1. Product size: 163 * 163 * 70mm
2. Luminous diameter: 125MM
3.Lamp Bead Type: Taiwan Epistar Chip Bead
4. Number of lamp beads: 60
5. Lamp bead color: red yellow blue green white
6. Red wavelength: 620-625NM
7. Yellow wavelength: 590-595NM
8. Blue wavelength: 470-475NM
9. Green wavelength: 500-505NM (blue-green) 520-525NM (emerald green)
10. White brightness: 18900-22600MCD
11. Rated voltage: DC12V / 24V
12. Protection level: IP68
13. Rated power: ≤ 5W
14. Shell material: PC
15. Working temperature: -40 ℃ ~ 65 ℃
16. Service life: 100000H
The characteristics of Mini 125mm Toy Lamp Arrow Board Module Cluster:
1. The Mini 125mm Toy Lamp Arrow Board Module Cluster is one of the components of the 125mm small traffic lights.
2. Mini 125mm Toy Lamp Arrow Board Module Cluster adopts Taiwan wafer chip chip beads, high brightness, high refresh rate and long service life.
3. The back of the Mini 125mm Toy Lamp Arrow Board Module Cluster is fully potted with three anti-paints, and the waterproof level reaches IP68.
4. Mini 125mm Toy Lamp Arrow Board Module Cluster with matching sunshade with self-opening mold, unique shape and beautiful shape.
Third, the physical picture of Mini 125mm Toy Lamp Arrow Board Module Cluster:
Mini 125mm Toy Lamp Arrow Board Module Cluster wiring:
1.Power 12V / 24V:
(1) Black negative
(2) Red positive
2. Connected to 220V:
(1) Black zero line
(2) Red zero line
5.Packing of Mini 125mm Toy Lamp Arrow Board Module Cluster:
1.The traffic light module is made with clear lens through second distribution of light intensity, it features high penetrability and anti-UV and can meet the luminous intensity and visual angle requirements to the ulmost extent.
2.The traffic light module has been tested and approved by traffic products test centre of the ministry of public security CE standard are also availbale in our company.
3.Application: wider intersection.
4.Easy to repair.
5.The traffic light module is exquisitely made with novelty design and looks quite wonderful
6.The newest integrated arrow traffic lights always adopts high intensity cold-rolled steel, it is perfect way to combine with other products.
7.Embedded led traffic signal light pole.
8.Installation way : Horizontely or vertically.
9.It is quite straightforward and easy to understand .
Mini 125mm Toy Lamp Arrow Board Module Cluster
Product name :Mini 125mm Toy Lamp Arrow Board Module Cluster
Lamp diameter:125mm
Material :PC
LED QTY:60pcs
Voltage:DC12v/24v
Power:3.6w
visual distance:>1000m
wave length:620-630nm
housing diameter:16mm
Application:school teaching , sport playground , decortaion ,etc
Certificate:CE,ROhs
LED Color:GREEN
warranty:2 years
lifespan :3-5years
The details of the Mini 125mm Toy Lamp Arrow Board Module Cluster:
Product model: WDM-C125 Mainly used in schools, youth palaces, playgrounds, children's playgrounds
1. Product size: 163 * 163 * 70mm
2. Luminous diameter: 125MM
3.Lamp Bead Type: Taiwan Epistar Chip Bead
4. Number of lamp beads: 60
5. Lamp bead color: red yellow blue green white
6. Red wavelength: 620-625NM
7. Yellow wavelength: 590-595NM
8. Blue wavelength: 470-475NM
9. Green wavelength: 500-505NM (blue-green) 520-525NM (emerald green)
10. White brightness: 18900-22600MCD
11. Rated voltage: DC12V / 24V
12. Protection level: IP68
13. Rated power: ≤ 5W
14. Shell material: PC
15. Working temperature: -40 ℃ ~ 65 ℃
16. Service life: 100000H
The characteristics of Mini 125mm Toy Lamp Arrow Board Module Cluster:
1. The Mini 125mm Toy Lamp Arrow Board Module Cluster is one of the components of the 125mm small traffic lights.
2. Mini 125mm Toy Lamp Arrow Board Module Cluster adopts Taiwan wafer chip chip beads, high brightness, high refresh rate and long service life.
3. The back of the Mini 125mm Toy Lamp Arrow Board Module Cluster is fully potted with three anti-paints, and the waterproof level reaches IP68.
4. Mini 125mm Toy Lamp Arrow Board Module Cluster with matching sunshade with self-opening mold, unique shape and beautiful shape.
Third, the physical picture of Mini 125mm Toy Lamp Arrow Board Module Cluster:
Mini 125mm Toy Lamp Arrow Board Module Cluster wiring:
1.Power 12V / 24V:
(1) Black negative
(2) Red positive
2. Connected to 220V:
(1) Black zero line
(2) Red zero line
5.Packing of Mini 125mm Toy Lamp Arrow Board Module Cluster:
