Silicone Guard Overhead Power Line Cover
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|
Silicone Guard Overhead Power Line Cover
Description

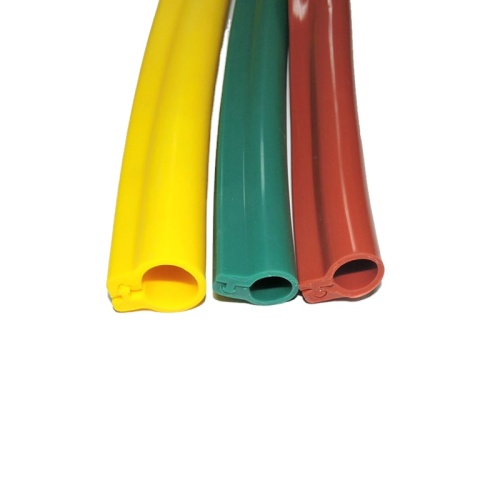

SINOFUJI Power Cable Silicone Rubber Overhead Line Insulation Sleeve design, ease of installation. Use silicone rubber material, anti-aging, corrosion resistance, with good resistance to corona resistance, high temperature performance, especially suitable for the protection of the bare wire. Power Cable Silicone Rubber Overhead Line Insulation Sleeve widely used in substation protection works and railway catenary system, a significant effect in the cross-lines.
| Voltage(KV) | ≤10KV | ≤35KV | ≤110KV | ≤220KV |
| Thickness | 2.0±0.3mm | 2.6±0.4mm | 4.0±0.5mm | 6.0±1.0mm |
Technical Performance
| Serial No. | Properties | Unit | Standard Data | Test Results | Test Methods |
| 1 | Electrical Strength Test | kV/mm | ≥20 | 22 | GB/T 1408.1-2006 |
| 2 | Volume Resistivity | Ω·cm | ≥1×1014 | 2×1014 | GB/T 1410-2006 |
| 3 | Dielectric Constant | 2~3 | 2.3 | GB/T 1409-2006 | |
| 4 | Shore Hardness | A | 70±5 | 71 | GB/T 531 |
| 5 | Mechanical Properties | GB/T 528 | |||
| 5.1 | Before heat ageing | ||||
| Tensile Strength | MPa | ≥4.0 | 5.5 | ||
| Elongation at break | % | ≥200 | 243 | ||
| 5.2 | After Heat ageing(180ºC, 7d) | % | ±30 | 13 | |
|
Tensile Strength Change Elongation Change |
% | ±30 | -22 | ||
| 6 | Low Temperature Elongation(-15ºC, 2h) | % | ≥20 | 190 | GB/T 2951.4-1997 |
| 7 | Low Temperature Flexibility(-50ºC, 4h) | - | No cracks | No cracks | UL224-2004 |
| 8 | High Temperature Crack Resistance(155ºC, 2h) | - | No cracks | No cracks | GB/T2951.6-1997 |
cal Per
Structure
Dimensions
|
LJ Stranded Wire Cross-sectional Area(Nominal) |
O.D. Of LJ Stranded Wire(mm) |
Silicone Rubber Sleeving Covers Models(mm) |
|
50 |
9.00 |
12 |
|
70 |
10.80 |
12 |
|
95 |
12.48 |
17 |
|
120 |
14.25 |
17 |
|
150 |
15.75 |
20 |
|
185 |
17.50 |
20 |
|
210 |
18.75 |
24.2 |
|
240 |
20.00 |
24.2 |
|
300 |
22.40 |
24.2 |
|
400 |
25.90 |
30 |
|
500 |
29.12 |
32 |
|
630 |
32.67 |
35 |
|
800 |
36.90 |
39.8 |
|
LGJ Stranded Wire& LGJF Stranded Wire Cross-sectional Area(Nominal) |
O.D. Of LJ Stranded Wire(mm) |
Silicone Rubber Sleeving Covers Models(mm) |
|
35 |
-- |
12 |
|
50 |
-- |
15.6 |
|
70/10 |
11.4 |
17 |
|
70/40 |
13.6 |
17 |
|
95/15 |
13.61 |
17 |
|
95/20 |
13.87 |
17 |
|
95/55 |
16 |
17 |
|
120/7 |
14.5 |
20 |
|
120/20 |
15.07 |
20 |
|
120/25 |
15.74 |
20 |
|
120/70 |
18 |
20 |
|
150/8 |
16 |
20 |
|
150/20 |
16.67 |
20 |
|
150/25 |
17.1 |
20 |
|
150/35 |
17.5 |
20 |
|
LGJJ-120 |
15.5 |
20 |
|
LGJJ-150 |
17.5 |
20 |
|
LGJQ-150 |
16 |
20 |
|
185/10 |
18 |
24.2 |
|
185/25 |
18.9 |
24.2 |
|
185/30 |
18.88 |
24.2 |
|
185/45 |
19.6 |
24.2 |
|
210/10 |
19 |
24.2 |
|
210/25 |
19.98 |
24.2 |
|
210/35 |
20.38 |
24.2 |
|
210/50 |
20.86 |
24.2 |
|
240/30 |
21.6 |
24.2 |
|
240/40 |
21.66 |
24.2 |
|
240/55 |
22.4 |
24.2 |
|
LGJJ-185 |
19.6 |
24.2 |
|
LGJJ-240 |
22.4 |
24.2 |
|
LGJQ-185 |
18.4 |
24.2 |
|
LGJQ-240 |
21.6 |
24.2 |
|
400/20 |
26.91 |
32 |
|
400/25 |
26.64 |
32 |
|
400/35 |
26.82 |
32 |
|
400/50 |
27.63 |
32 |
|
400/65 |
28 |
32 |
|
400/95 |
29.14 |
32 |
|
500/35 |
30 |
32 |
|
500/45 |
30 |
32 |
|
500/65 |
30.96 |
32 |
|
800/55 |
38.4 |
39.8 |
|
800/70 |
38.58 |
39.8 |
|
800/100 |
38.58 |
39.8 |
Installation Instructions
1. Clean the inside of the RUBNS-OLC with cleaning cloth and alcohol fluids until the inside is
clean without dust;
2. Connect the pointed plastic mouth to the body of RTV silicone rubber adhesive bottle. See illustration 1 above.
3. Smear RTV silicone rubber adhesive all over the concave channel of the RUBNS-OLC
uniformly as showed in illustration
4. Uniformly smear the two flat fringes of the concave channel with RTV silicone
rubber adhesive as the illustration
5.Connect the bulging part of the RUBNS-OLC on one side into the concave channel of the
other side and squeeze the connecting part from one end to the other as illustration 4 indicates
