Insulation cover for 24kv overhead transmission line
Your message must be between 20 to 2000 characters
Contact NowInsulation cover for 24kv overhead transmission line
Description

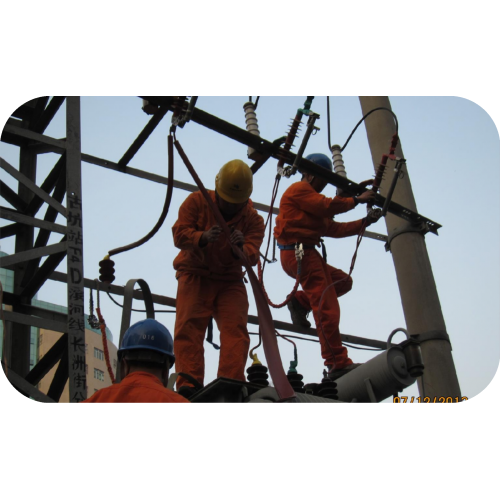

Insulation cover for 24kv overhead transmission line. The innovative product design, ease of installation. Use silicon rubber material, anti-aging, corrosion resistance, with good resistance to corona resistance, high temperature performance, especially suitable for the protection of the bare wire. Widely used in substation protection works and railway catenary system, a significant effect in the cross-lines. Insulation cover for 24kv overhead transmission line.
Technical Performance
|
Serial No. |
Properties |
Unit |
Standard Data |
Test Results |
Test Methods |
|
1 |
Electrical Strength Test |
KV/mm |
20 |
22 |
GB/T 1408.1-2006 |
|
2 |
Volume Resistivity |
Ω.cm |
1×1014 |
2×1014 |
GB/T 1410-2006 |
|
3 |
Dielectric Constant |
|
2-3 |
2.3 |
GB/T 1409-2006 |
|
4 |
Shore Hardness |
|
70±5 |
7.1 |
GB/T 531 |
|
5
5.1 5.2 |
Mechanical Properties Before ageing Tensile Strength
Elongation at break After Heat ageing(180°C, 7d)
Tensile Strength Change Elongation Change |
MPa
%
%
|
4.0
200
±30
±30 |
5.5
243
13
-22 |
GB/T 528 |
|
6 |
Low Temperature Elongation(-15°C, 2h) |
% |
20 |
190 |
GB/T 2951.4-1997 |
|
7 |
Low Temperature Flexibility(-50°C, 4h) |
- |
No cracks |
No cracks |
UL224-2004 |
|
8 |
High Temperature Crack Resistance(155°C, 2h) |
- |
No cracks |
No cracks |
GB/T2951.6-1997 |
Product Dimensions
Voltage Ratings/Wall Thickness
|
Voltage(kV) |
10kV |
35kV |
110kV |
220kV |
|
Thickness(mm) |
2.3mm |
2.3-3.0mm |
4.0-6.0mm |
6.0-8.0mm |
