Excellent Weather Resistance and Moisture SINOFUJI Insulation Mastic Tape
SINOFUJI's various tapes, whether they are for filling, sealing, insulating, fireproofing (flame retardant), waterproofing, etc., have been used in aerospace, petroleum exploration, high-speed rail, military and other related fields. SINOFUJI products are demonstrated as the technical industrialization platform in adhesives of the Changchun Institute of Applied Chemistry (abbreviated as CIAC, one affiliated organization of CAS that is Chinese Academy of Sciences who was established in Nov. of 1949 as the highest academic institution in China), and inherit the technical accumulation of CIAC in adhesives and Electrical Insulation. CIAC, as the shareholder of CASAC, has being cooperated closely with CASAC in the high-tech industry. CASAC has a number of national patents and is a national high-tech enterprise with intellectual property rights. As the parent company of SINOFUJI, CASAC has many honors in the field of electrical power insulation:

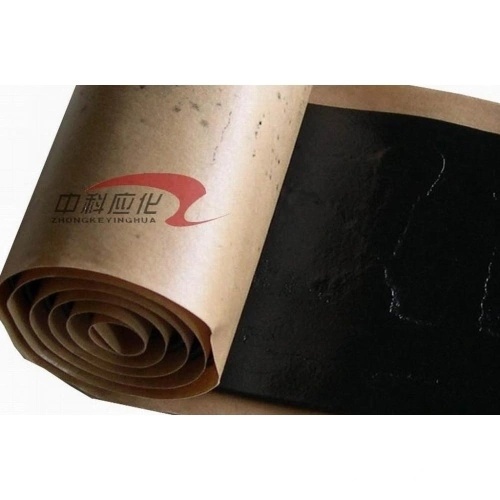

SINOFUJI Insulation Mastic Tape is to provide sealing and stuffing for underground cable and overhead cables.
Features:
l Excellent sticky property, make it suitable for use in complex structure with good filling and insulation.
l Good adhesion to metal, rubble and other cable accessories.
l Can be isolated to ozone, water and different chemical substantial Operating temperature: -40℃to 80℃.
l Standard color: black&grey
Technical Performance:
|
Testing Items |
Testing method |
Testing Data |
|
Tensile strength |
ASTM D 2671 |
≥0.05MPa |
|
Elongation at break |
ASTM D 2671 |
≥500% |
|
Dielectric strength |
IEC 243 |
≥10KV/mm |
|
Density |
ASTM D 792 |
1.25g/cm3 |
|
Volume resistance |
IEC93 |
≥1.0x1013Ω•cm |
|
Adhesive to steel |
DIN 30672 |
0.5N/mm |
Dimensions:
|
Code |
Thickness(mm) |
Width(mm) |
Length(mm) |
Standard packing |
|
HB1513 |
2 |
50 |
3000 |
1pc/box; 25pcs/carton |
*Other sizes and packing are available on requested.
Product Feature:
1.Self Fusing Tape.
2.Flexible over wide temperature range.
3.Conformable for applications over irregular surfaces.
4.Excellent weather, moisture and UV resistance.
5.Excellent electrical insulation properties.
Application range:
1.Protection on CATV components.
2.Insulation of cables and wires.
3.Cable sheath repair.
4.Moisture sealing electrical connections.
Instrucations:
1. Clean the dirt on the conenction of cables and wires.
2. Peel off the release paper, fully stretch the tape to maintain a certain tensile strength.
3. Stick the adhesive side on the objects to achieve better conformable ,waterproof and sealing effect.
4. Continue applying half-overlap wraps, at least 2 layers5. Apply final overwrap with zero stretch, press the tape for a moment.
Related information:
The product is stored as rolls according to specified dimensions with release paper and packed in a box. It is recommended to store with the original packing, and be protected from moisture, dust, heat as well as sunlight.
