Heat Resistant Mastic Sealing Tape
Your message must be between 20 to 2000 characters
Contact NowSINOFUJI Heat Resistant Mastic Sealing Tape is for primary sealing for power cable joints and terminations, wire harness, and different electrical connections in heat shrink and cold shrink field. Also work as wrapping pad for sharp edges and to smooth out irregular shapes and transitions.
Features:
l Excellent sticky and sealing properties.
l Heat resistant.
l Flexible to fill any irregular shapes.
l Anti-aging, anti-weathering.
l Service temperature: -30℃to 130℃.
l Standard color: Black
Technical Performance:
|
Testing Items |
Testing method |
Testing Data |
|
Tensile strength |
ASTM D 2671 |
≥0.1MPa |
|
Elongation at break |
ASTM D 2671 |
≥800% |
|
Dielectric strength |
IEC 243 |
≥15KV/mm |
|
Adhesive to steel |
ASTM D 792 |
1.20±0.05g/cm3 |
|
Volume resistance |
IEC 93 |
≥1.0x1013Ω•cm |
|
Peel strength |
DIN 30672 |
30N/mm |
Dimensions:
|
Code |
Thickness(mm) |
Width(mm) |
Length(mm) |
Standard packing |
|
HB1109 |
1 |
80 |
340 |
200pcs/carton |
*Other sizes and packing are available on requested.
Related information:

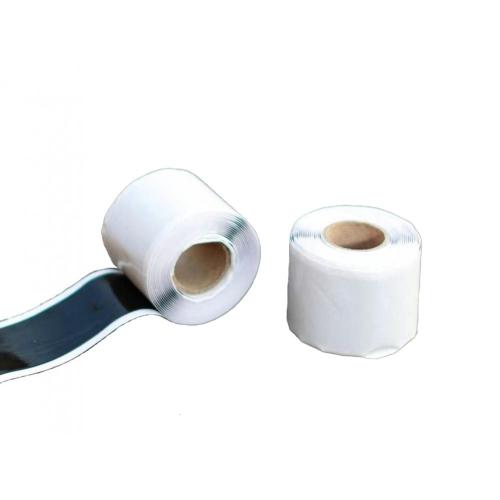

The product is supplied as rolls of specified dimensions. It is recommended to store with the original packing, and be protected from moisture, dust, heat as well as sunlight.
