shoe making machinery for shoe vamp sewing

$9800.00

≥1 Set/Sets

Min. Order:: 1 Set/Sets

Min. Order:: 1 Set/Sets

Transportation:: Ocean, Land, Air

Port:: Yantian

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	1000sets /month
Supply Ability:	1000sets
Payment Type:	L/C,T/T
Incoterm:	FOB,CFR,CIF,EXW
Certificate:	ISO9001 CE
HS Code:	8452219000
Transportation:	Ocean,Land,Air
Port:	Yantian

Product Description

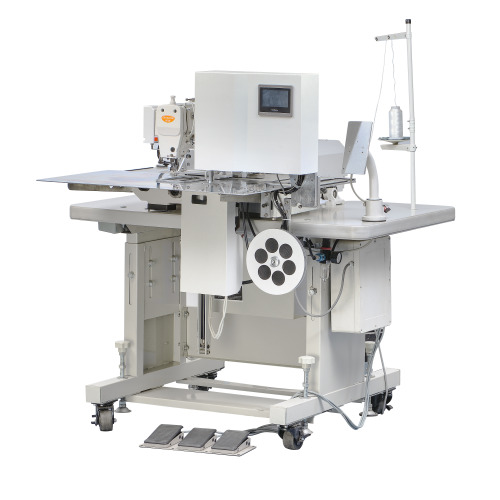

Automatic sewing machine for shoe lace loop sewing, one machine can finished 3 working process. with automatic punching the shoe eyelet and feeding the shoe lace loop function.

Footwear sewing machine, Computerized sewing machine with Servo motor control to improve th feeding device for high-speed and heavy fabric, prevent from the NG stitch and deviation problem.
industrial sewing machine compatible with Brother system, with large sewing area.
Pneumatic foot presser driving mode.
Computerized pattern edit, shoe sewing machine
High efficient sewing, and perfect sewing quality make this model the best selling in Chache sewing machines
Beefed-up needle penetration force.

Model	CC-3020G-01A
Sewing area	Max.30×20cm
Line	single needle sewing
Highest sewing speed	2700rpm
Feeding device	Intermittent feeding (pulse motor driven mechanism)
Stitch length	0.05-12.7mm
Max.stitches	20,000 stitches/pattern
Work clamp lifter	pnuematic (height:max.30mm)
Clamp lifter	divided
Clamp lifter ascensional range	22mm
Hook	double shuttle hook
Tension device	electric tension device
Data storage	USB or Memory card(CF card can save and edit any sewing patterns)
Motor	AC servo motor 550W
Air pressure	0.5Mpa 1.8L/min
Net weight	220kg
Gross weight	290kg
Packing	126126135cm
CBM	2.14m³

shoe sewing machine
