Shenzhen Chaocheng Sewing Technology Co., Ltd
Shenzhen Chaocheng Sewing Technology Co., Ltd
industry shoe making machine
  • industry shoe making machine
  • industry shoe making machine
industry shoe making machine
industry shoe making machine

industry shoe making machine

$1200.00 - $12000.00/Set/Sets
Min. Order:
1 Set/Sets
Min. Order:
1 Set/Sets
Transportation:
Ocean, Land, Air
Port:
Yantian
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: China
Productivity: 3000sets /month
Supply Ability: 3000sets
Payment Type: L/C,T/T
Incoterm: FOB,CFR,CIF,EXW
Certificate: ISO9001 CE
HS Code: 8452219000
Transportation: Ocean,Land,Air
Port: Yantian
Product Description
Product Description


Product Description

Shoe sewing machine with servo drive: X and Y use servo drive, which makes the stitch more beautiful, low noise and low vibration.
 Broken thread sensor of industrial sewing machine: used to sense thread broken, the sewing operation will automatically stop when the thread is broken. "
Adopting the international advanced drive motor and double guide rails,high speed and low vibration, double guarantee of productivity and comfort
 Large sewing area of 600×400mm, the industial sewing machine is the best choice for sewing large patterns such as shoes/luggage suitcase/airbag/clothing
 Integrating Chache's core technology and customer's usage habits, it achieves the ultimate experience with higher precision and wider range.
 Equipped with a disconnection sensor, combined with a new generation of operating software, it realizes multiple functions of automatic induction, automatic stop, automatic alarm, smart and energy-saving"





  • Using international advanced drive motor and double guide rails, fast speed and small vibration, double guarantee of productivity and comfort
  •  Large sewing area of 600×400mm, great choice for luggage/airbag/clothing etc.
  •  Chache Industrial sewing machine combines  our core technology and customer's usage habits to achieve the ultimate experience with higher accuracy and a wider range.
  •  Equipped with a disconnection sensor, combined with a new generation of operating software, it realizes multiple functions of automatic induction, automatic stop, automatic alarm, and more energy-saving intelligence



Specification


Model CC-6040G-01A
Sewing area Max.60×40cm
Line single needle sewing
Highest sewing speed 2700rpm
Feeding device Intermittent feeding (pulse motor driven mechanism)
Stitch length 0.05-12.7mm
Max.stitches 20,000 stitches/pattern
Work clamp lifter pnuematic (height:max.30mm)
Clamp lifter all in one
Clamp lifter ascensional range 22mm
Hook double shuttle hook
Tension device digital tension device
Data storage USB or Memory card(CF card can save and edit any sewing patterns)
Motor AC servo motor 550W
Air pressure 0.5Mpa 1.8L/min
Net weight 500kg
Gross weight 570kg
Packing  171*164*140cm
CBM 3.9m³


Product Show

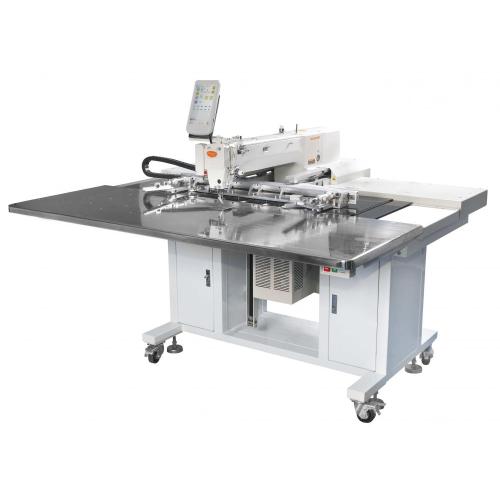

 shoe sewing machine

automatic sewing machine
