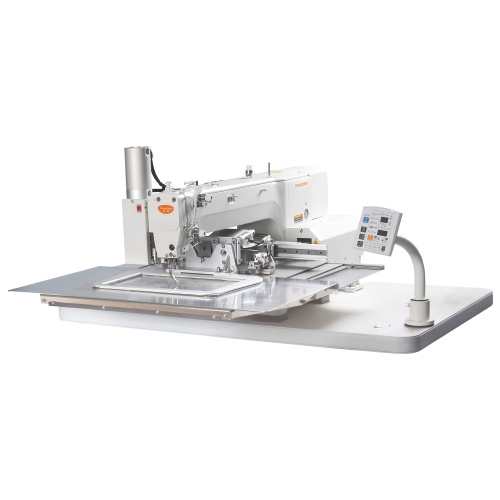

shoe eyelet sewing machine

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Holing sewing machine with 2 in 1 working step, save the working time and easy to operate
Support customized shape and size

Holing sewing machine with the accurate sewing finishes for extra-heavy and tough materials
Hole punching sewing machine is specialized in heavy fabrics, or leather products.
For Chache, Hole punching sewing machine, one worker can operate several machines. Hole punching and sewing machine with LCD color touch control panel optional, brother control system, make 2 working precess into 1, save the working time.
One worker can operate several machines. Hole punching and sewing machine with LCD color touch control panel optional, brother control system

easy to be moved,convenient to creat and edit program and with flip-flop device optional

electronic buton holing machine

Model	CC-3020G-01A-CF
Punching head	1 heads, standard circle(1.2-3.8mm)
Line	single needle sewing
Highest sewing speed	2700rpm
Highest punching speed	1000rpm
Feeding device	Intermittent feeding (pulse motor driven mechanism)
Stitch length	0.05-12.7mm
Max.stitches	20,000 stitches/pattern
Work clamp lifter	pnuematic (height:max.30mm)
Clamp lifter	all in one
Clamp lifter ascensional range	22mm
Hook	double shuttle hook
Tension device	electric tension device
Data storage	USB or Memory card(CF card can save and edit any sewing patterns)
Motor	AC servo motor 550W
Air pressure	0.5Mpa 1.8L/min
Net weight	220kg
Gross weight	290kg
Packing	126126135cm
CBM	2.14m³
