Latest technology industrial sewing machine

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

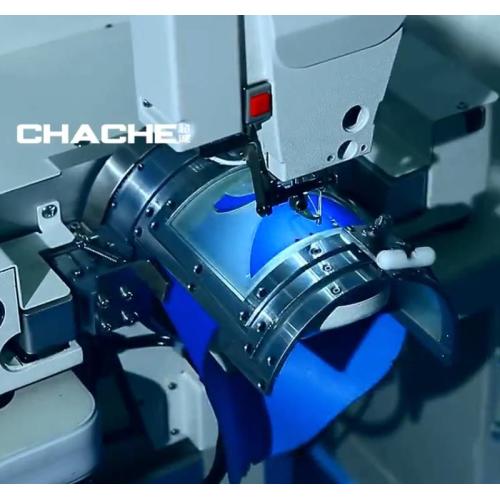

- Shoe sewing machine with high speed sewing,low power consumption, improve the producivity and excellent sewing quality
this automatic sewing machine have stardard model and special model for 3D sewing and zigzag sewing
7" color LCD touch panel contol with easy and convenient operation
Uneven prevention function when feeding the materials, this model has patent for Chache industrial sewing machine
Chache pattern sewing machine is suitable for heavy fabric sewing (leather, thick fabric etc)
Automatic sewing for the recycling mask
Double shuttle hook, automatic thread break detector.
Automatic feeding device with the rail system, precise sewing.

Model	CC-2210G-01A
Sewing area	Max.22×10cm
Line	single needle sewing
Highest sewing speed	2700rpm
Feeding device	Intermittent feeding (pulse motor driven mechanism)
Stitch length	0.05-12.7mm
Max.stitches	20,000 stitches/pattern
Work clamp lifter	pnuematic (height:max.30mm)
Clamp lifter	divided
Clamp lifter ascensional range	22mm
Hook	double shuttle hook
Tension device	electric tension device
Data storage	USB or Memory card(CF card can save and edit any sewing patterns)
Motor	AC servo motor 550W
Air pressure	0.5Mpa 1.8L/min
Net weight	160kg
Gross weight	208kg
Packing	12585135cm
CBM	1.44m³
