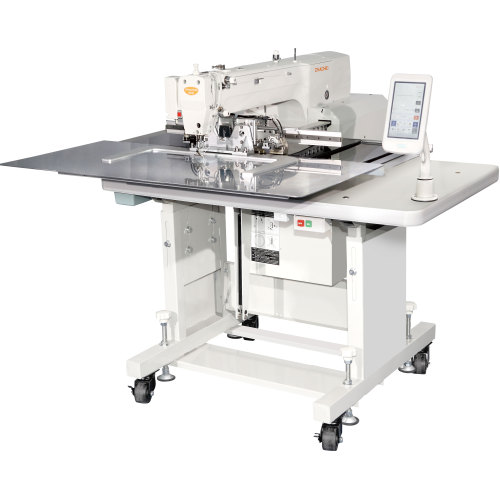

Electric Industrial Embroidery Machine
- Payment Type:
- L/C, T/T, Money Gram, Western Union
- Incoterm:
- FOB, CFR, CIF, EXW
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Delivery Time:
- 7 Days
- Transportation:
- Ocean, Land, Air
- Port:
- Yantian
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | China |
|---|---|
| Productivity: | 3000sets /month |
| Supply Ability: | 3000sets |
| Payment Type: | L/C,T/T,Money Gram,Western Union |
| Incoterm: | FOB,CFR,CIF,EXW |
| Certificate: | ISO9001 CE |
| HS Code: | 8452219000 |
| Transportation: | Ocean,Land,Air |
| Port: | Yantian |
Product Description
Product Description
- Electric pattern sewing machine with servo motor drive
- Large stitching area which can sew shoe upper, leather bag and other heavy fabrics.
- LCD touch panel control system (optional)
- adopted energy saving technology for low comsumption and environmental protection.
- Latest double action thread trimming device enhances the sewing quality, reduces the bird's nest.
- Multi-use in shoe upper sewing, shoe-pad sewing,leather sewing, label sewing,velcro sewing,braid sewing,etc.
Shoe sewing machine, leather sewing machine, industrial sewing machine, computerized sewing machine, footwear sewing machine, automatic sewing machine
| Model | CC-4530G-01A | ||
| Sewing area | Max.45×30cm | ||
| Line | single needle sewing | ||
| Highest sewing speed | 2700rpm | ||
| Feeding device | Intermittent feeding (pulse motor driven mechanism) | ||
| Stitch length | 0.05-12.7mm | ||
| Max.stitches | 20,000 stitches/pattern | ||
| Work clamp lifter | pnuematic (height:max.30mm) | ||
| Clamp lifter | all in one foot pedal | ||
| Clamp lifter ascensional range | 22mm | ||
| Hook | double shuttle hook | ||
| Tension device | electric tension device | ||
| Data storage | USB or Memory card(CF card can save and edit any sewing patterns) | ||
| Motor | AC servo motor 550W | ||
| Air pressure | 0.5Mpa 1.8L/min | ||
| Net weight | 230kg | ||
| Gross weight | 320kg | ||
| Packing | 126*126*135cm | ||
| CBM | 2.14m³ | ||
