Basic Info

Place of Origin:	China
Productivity:	1000sets /month
Supply Ability:	1000pcs
Payment Type:	L/C
Incoterm:	FOB,CFR,CIF,EXW
Certificate:	ISO9001 CE
HS Code:	8452219000
Transportation:	Ocean,Land,Air
Port:	Yantian

Product Description

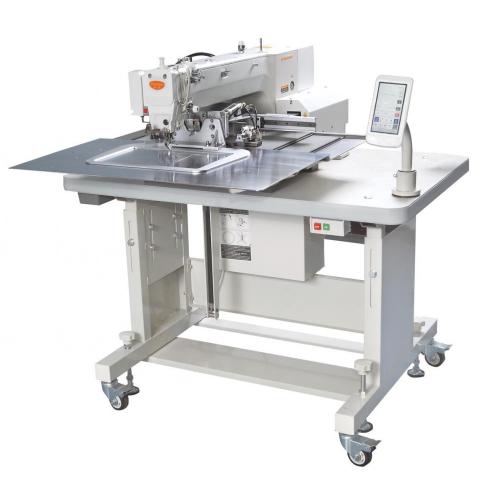

industrial sewing machine, automatic sewing machine, automatic welting machine, pattern sean machine, they are all with computer control, can edit the patterns in touch panel directly or draw the pattern in computer then input to machine.

7" LCD touch panel control for easy operation, compatible with Brother system
To fix the fabric easily with presser foot 2-step down, due to the accurate needle position, this sewing equipment can sew a fine and exquisit lines
Servo motor control to improve th feeding device for high-speed and heavy fabric, prevent from the NG stitch and deviation problem.
low power consumption, economical and practical sewing machine

Model	CC-3525G-01A
Sewing area	Max.35×25cm
Line	single needle sewing
Highest sewing speed	2700rpm
Feeding device	Intermittent feeding (pulse motor driven mechanism)
Stitch length	0.05-12.7mm
Max.stitches	20,000 stitches/pattern
Work clamp lifter	pnuematic (height:max.30mm)
Clamp lifter	all in one
Clamp lifter ascensional range	22mm
Hook	double shuttle hook
Tension device	electric tension device
Data storage	USB or Memory card(CF card can save and edit any sewing patterns)
Motor	AC servo motor 550W
Air pressure	0.5Mpa 1.8L/min
Net weight	220kg
Gross weight	290kg
Packing	126126135cm
CBM	2.14m³
