computer industrial sewing machine

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

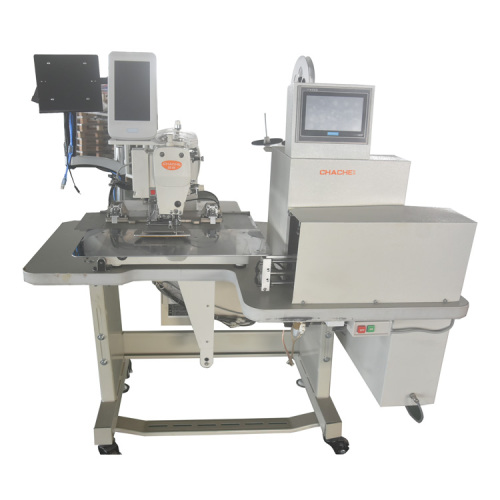

Automatic sewing machine is for sewing the sneaker lace loop, computerized pattern sewing machine for easy operation

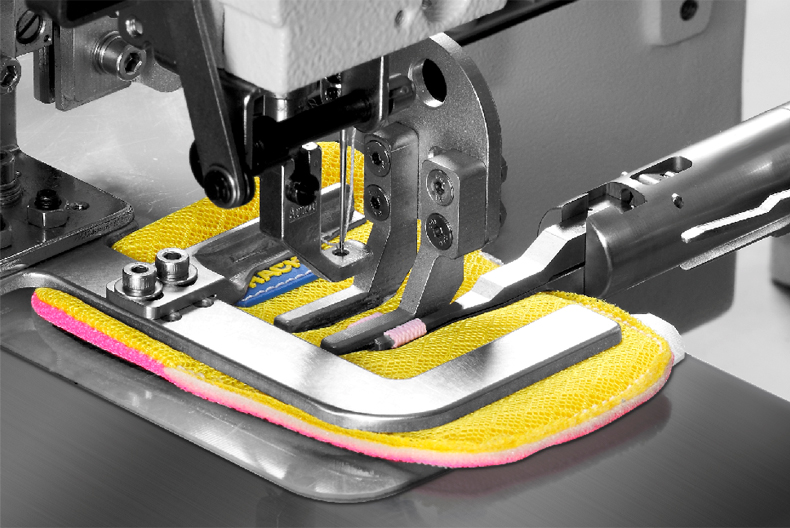

Shoelace loop attaching sewing machine with the mechanical arm to feed the shoelace, safe production, reduce the operation accident
Compare to the traditional old pattern sewing machine, this new automatic sewing machine improve at least 60% working efficiency
1 worker can operate the several loop attaching sewing machines, improve the production efficiency.
Fully automatic feeding for sneaker tongue sewing, the control and edit system compatible with Brother sewing machine

Model	CC-2210G-02A-XS
Sewing area	Max.22×10cm
Line	single needle sewing
Highest sewing speed	2700rpm
Feeding device	Intermittent feeding (pulse motor driven mechanism)
Stitch length	0.05-12.7mm
Max.stitches	20,000 stitches/pattern
Work clamp lifter	pnuematic (height:max.30mm)
Clamp lifter	divided
Clamp lifter ascensional range	22mm
Hook	double shuttle hook
Tension device	electric tension device
Data storage	USB or Memory card(CF card can save and edit any sewing patterns)
Motor	AC servo motor 550W
Air pressure	0.5Mpa 1.8L/min
Net weight	280kg
Gross weight	350kg
Packing	12590135cm
CBM	1.52m³
