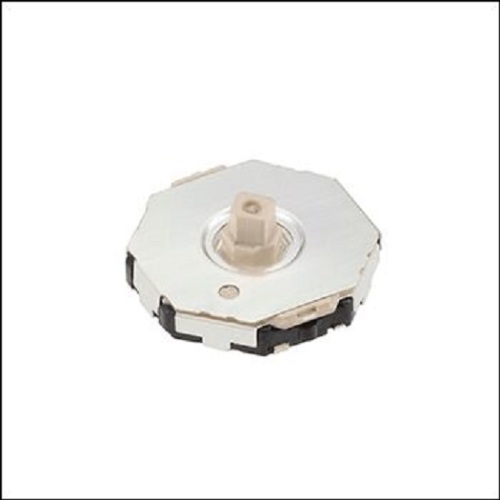

Thin switch with body thickness 2.3mm

Product number: RKJXS1004001

Number of operating axes: 1 axis

Shaft material: Resin

Switch ON angle: 7° max in each direction.

Stroke (center press): 0.3±0.2mm

Operating temperature range: -20℃ to +70℃

Maximum rating (resistive load): 10mA 5V DC

Electrical properties

Direction resolution: 8 directions

Insulation resistance: 50MΩ min. 50V DC

Withstand voltage: 50V AC for 1 minute or 60V AC for 2s

Mechanical behavior

Directional force: 0.8±0.5N

Press force: 2.5±1.5N

Strength of operation unit

Push and pull direction: 30N (Push), 10N (Pull)

Action direction: 20N

Durability

Operating life

Direction: 500,000 cycles in each direction

Center press: 500,000 cycles

Environmental resistance

Cold resistance: -40±2℃ for 96h

Heat resistance: 85±2℃ for 96h

Humidity resistance: 60±2℃, 90 to 95%RH for 96h

Minimum order unit (pcs.)

Japan:3800

Exit:3800
