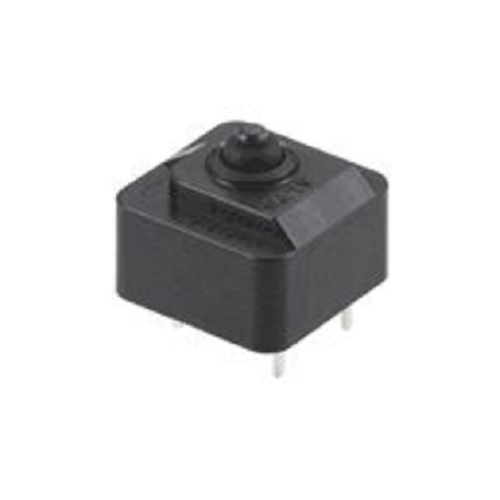

Power sensing type waterproof switch

Product number: SDKRA10100

Type: Press

Circuit composition：SPST

Stroke：1.5mm

Action force：2.5±1.5N

installation method：PC board

AC Switch：1A 125V AC, 0.5A 250V AC (resistive load)

DC Switch：10mA 5V DC (resistive load)

Rated based on electrical safety law：1A 125V AC

Operating temperature range：-10℃ to +85℃

Electrical properties

Contact resistance：  100mΩ max. (AC Switch)

500mΩ max. (DC Switch)

Insulation resistance： 500MΩ min. 500V DC (AC Switch)

100MΩ min. 100V DC (DC Switch)

Withstand voltage：   1,000V AC for 1 minute (AC Switch)

100V AC for 1 minute (DC Switch)

Mechanical behavior

Terminal strength：5N for 1 minute

Strength of operation unit

Action direction: 100N

Right angle direction: 20N

Durability

Operating life: 100,000 cycles 0.5A 250V AC

Environmental resistance

Cold resistance: -20℃ 240h

Heat resistance: 85℃ 240h

Humidity resistance: 60℃, 90 to 95%RH 1000h

Minimum order unit (pcs.):

Japan: 750

Exit:3000
