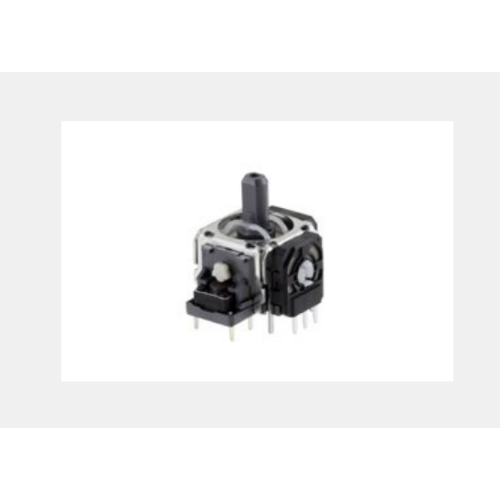

RKJXV Series Joystick controller

Product Number:RKJXV122400R

Number of operation axes 1 axis

Axis Material Resin

The joystick reset mechanism has

Varistor Unit Maximum Voltage 50V AC, 5V DC

Angle of motion 23 degree Max in all directions.

Resistance Law B (0B)

Total resistance 10 K

Operating life 2,000,000 cycles

Center Press Department Center press has

Maximum rated 50mA 12V DC

Trip 0.4 (+0.5, -0.3) mm

Operating life 500,000 cycles

Use temperature range -10 to +70 C

Electrical Performance Directional Resolution Continuous

Insulation resistance 100Mmin. 250V DC

Voltage resistant 250V AC for 1 minute

Rated power 0.0125W

Slide Noise 300mV P-P max. by JIS method

Mechanical Performance Directional Motion 14 +10 mN < m

Press action 7.4 +3N

Control lever restores essence + (+) 5 degrees

Operating part strength Push direction 98N min. (Push), 50N min. (Pull)

Durability Operating Life Direction 2,000,000 cycles

Center press 500,000 cycles

Environmental resistance - Cold resistance - 30 C 96h

Heat resistance 80 C 96h

Humidity resistance 60 C, 90 to 95%RH 96h

Minimum Order Unit (pcs.) Japan 1,420

Export 1,420
Welding Conditions

Reference examples of dipping methods

Preheating Surface Temperature of Welded Surface 90 to 100 C

Heating time 60s max.

Immersion welding temperature 260 C

Welding time 5S

Number of welds 1 time

Reference examples of manual welding methods

Pyramid head temperature 350 C max.

Welding time 3S max.

Number of welds 1 time
