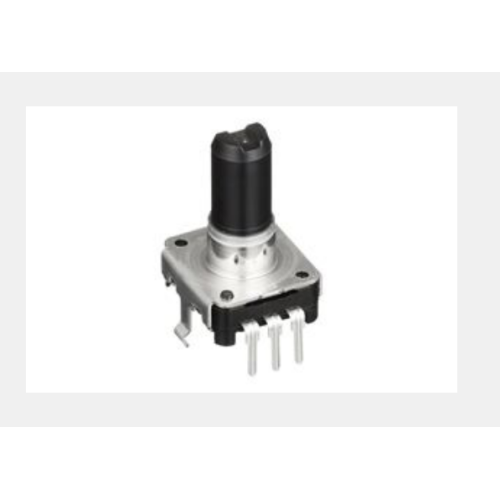

Ec12 series Incremental encoder

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Product number:EC12E24204A8

Standard type
Length of operation section 20mm
torque Standard
3 to 20mN･m
Positioning number twenty-four
Number of pulses twenty-four
Direction of operation section Vertical
Operating temperature range - 10℃ to +70℃
Electrical properties rated 0.5mA 5V DC
output signal A. B, 2-phase output
Maximum / minimum operating current (resistive load) 5mA/0.5mA
insulation resistance 10MΩ min. 50V DC
Withstand voltage 50V AC for 1 minute
Mechanical properties Positioning torque 3 to 20mN·m
Shaft push-pull strength 80N
Durability Operating life 30,000 cycles
Minimum order unit (PCs.) Japan 2,400
Export 2,400

Welding conditions
Reference examples of immersion welding methods
preheat Surface temperature of welding surface 100℃ max.
heating time 1 min. max.
Immersion welding welding temperature 260±5℃
Welding time 3±1s
Welding times 2 time max.
Reference examples of manual welding methods
Soldering iron head temperature 350℃ max.
Welding time 3s max.
Welding times 1 time
