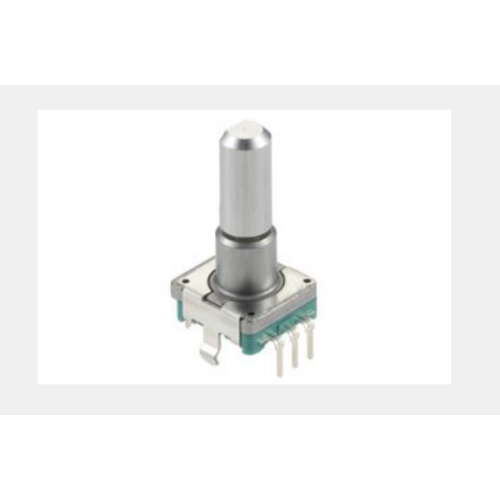

Ec11 series Incremental encoder

Product number:EC111012010H

structure Self-return switch
Shape of operation part Horizontal axis
Length of operation section 20mm
Positioning number nothing
Number of pulses Self-return switch
Press the on switch yes
Press on switch travel 0.5mm
Operating life 15,000 cycles
Operating temperature range - 40℃ to +85℃
Electrical properties rated 10mA 5V DC
output signal Automatic reset switch
Maximum / minimum operating current (resistive load) 10mA/1mA
insulation resistance 100MΩ min. 250V DC
Withstand voltage 300V AC for 1 minute or 360V AC for 2s
Mechanical properties Rotating torque 3 to 30mN·m
Shaft push-pull strength 100N
Press on switch specification Circuit and grounding points Single pole single throw (press on)
trip 0.5±0.3mm
Action force 6(+2.5, -2)N
rated 0.1A 5V DC (500 μ A 5V DC min. ratings)
Contact resistance (initial / after service life) 100mΩ max./200mΩ max.
Operating life 20,000 times
Minimum order unit (PCs.) Japan 1,200
Export 2,400
Welding conditions
Reference examples of immersion welding methods
preheat Surface temperature of welding surface 100℃ max.
heating time 2 min. max.
Immersion welding welding temperature 260±5℃
Welding time 5±1s
Welding times 2 time max.
Reference examples of manual welding methods
Soldering iron head temperature 350℃ max.
Welding time 3s max.
Welding times 1 time
