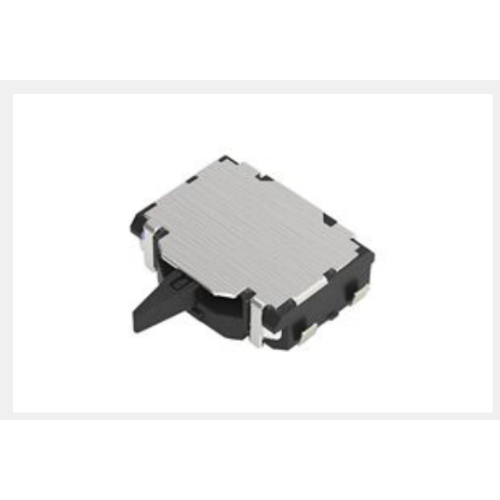

Small two-way perception Detection switch

Product number:SSCM120100

Number of circuits one
Connection points two
Terminal shape For PC board (Reflow)
Action force 0.35N max.
Full stroke position (mm) one point five seven
Locating pin nothing
Operating temperature range - 10℃ to +60℃
Maximum rated / minimum rated (resistive load) 1mA 5V DC/50 μ A 3V DC
Electrical properties Contact resistance (initial / after service life) 2Ω max./5Ω max.
insulation resistance 100MΩ min. 100V DC
Withstand voltage 100V AC for 1 minute
Mechanical properties Terminal strength 0.5N for 1 minute
Strength of operation part 2N
Durability No load life 50,000 cycles 5Ω max.
Load life (maximum rated load) 50,000 cycles 5Ω max.
Environmental resistance Cold resistance - 20℃ 96h
Heat resistance 85℃ 96h
Moisture resistance 40℃, 90 to 95%RH 96h
Minimum order unit (PCs.) Japan 3,000
Export 12,000
