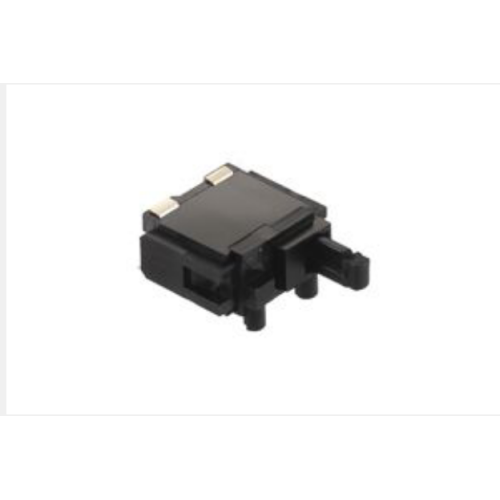

Universal type Detection switch

Product number:SPPB530701

Operation direction Horizontal
Number of circuits one
Connection points one
Shape of operation part Push
Terminal shape For PC board (Reflow)
Action force 0.35N max.
Packaging status Taping
Operating temperature range - 40℃ to +85℃
Maximum rated / minimum rated (resistive load) 0.1A 30V DC/50 μ A 3V DC
Electrical properties Contact resistance (initial / after service life) 1Ω max./2Ω max.
insulation resistance 100MΩ min. 100V DC
Withstand voltage 100V AC for 1 minute
Mechanical properties Terminal strength 3N for 1 minute
Strength of operation part 10N
Durability No load life 50,000 cycles 2Ω max.
Load life (maximum rated load) 50,000 cycles 2Ω max.
Environmental resistance Cold resistance - 40℃ 500h
Heat resistance 85℃ 500h
Moisture resistance 60℃, 90 to 95%RH 500h
Minimum order unit (PCs.) Japan 1,500
Export 6,000
