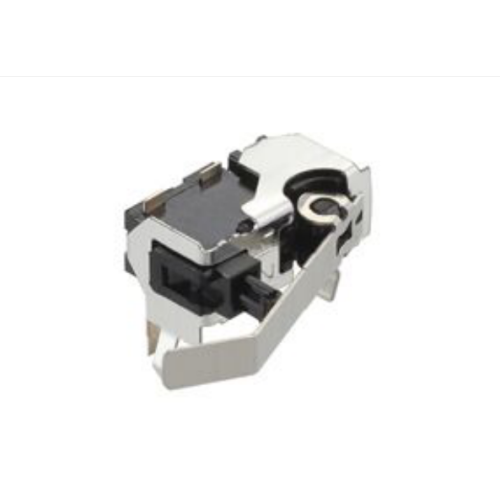

Universal type Detection switch

产品编号:SPPB6A0400

Operation direction Horizontal
Number of circuits one
Connection points one
Shape of operation part Actuator A
Terminal shape For PC board (Dip)
Action force 0.35N max.
Packaging status Bulk
Operating temperature range - 40℃ to +85℃
Maximum rated / minimum rated (resistive load) 0.1A 30V DC/50 μ A 3V DC
Electrical properties Contact resistance (initial / after service life) 1Ω max./2Ω max.
insulation resistance 100MΩ min. 100V DC
Withstand voltage 100V AC for 1 minute
Mechanical properties Terminal strength 3N for 1 minute
Strength of operation part 10N
Durability No load life 50,000 cycles 2Ω max.
Load life (maximum rated load) 50,000 cycles 2Ω max.
Environmental resistance Cold resistance - 40℃ 500h
Heat resistance 85℃ 500h
Moisture resistance 60℃, 90 to 95%RH 500h
Minimum order unit (PCs.) Japan 1,000
Export 5,000
Packing specification
bulk
Number of packages (PCs.) 1 case / Japan 1,000
1 case / export package 5,000
Size of export packing box (mm) four hundred × two hundred and seventy × two hundred and ninety
Welding conditions
Reference examples of immersion welding methods
Project Preheating temperature 100℃max.
Preheating temperature and time 60s max.
Immersion welding welding temperature 255±5℃
Welding immersion time 5±1s
Reference examples of manual welding methods
welding temperature 350±5℃
Welding time 5s max.
