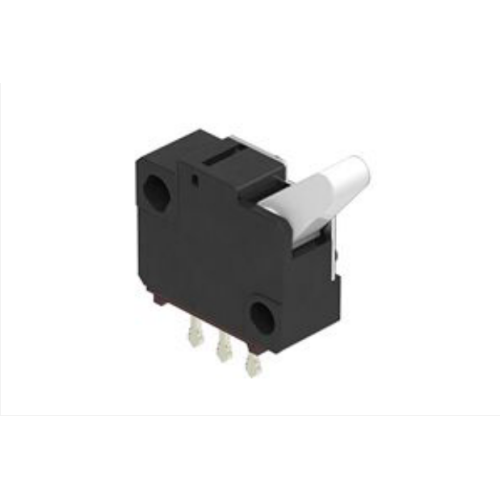

Micro opening and closing type Detection switch

Product number:SSCTL10400

Number of circuits one
Connection points two
Switching time limit Non shorting
Shape of operation part Lever
Terminal shape For Lead
Action force 0.7±0.3N
Operating temperature range - 40℃ to +85℃
Maximum rated / minimum rated (resistive load) 0.1A 12V DC/50 μ A 3V DC
Electrical properties Contact resistance (initial / after service life) 200mΩ max./500mΩ max.
insulation resistance 100MΩ min. 250V DC
Withstand voltage 250V AC for 1 minute
Mechanical properties Terminal strength 3N for 1 minute
Strength of operation part 20N
Durability No load life 10,000 cycles 500mΩ max.
Load life (maximum rated load) 10,000 cycles 500mΩ max.
Environmental resistance Cold resistance - 40℃ 500h
Heat resistance 85℃ 500h
Moisture resistance 60℃, 90 to 95%RH 500h
Minimum order unit (PCs.) Japan 1,000
Export 5,000
Packing specification
bulk
Number of packages (PCs.) 1 case / Japan 1,000
1 case / export package 5,000
Size of export packing box (mm) four hundred × two hundred and seventy × two hundred and ninety
Welding conditions
Reference examples of manual welding methods
welding temperature 350±5℃
Welding time 3s max.
