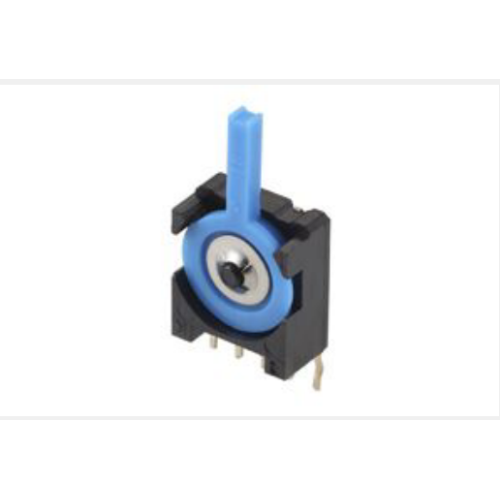

Bidirectional perception Detection switch

Product number:SSCF110100

Number of circuits one
Connection points two
Switching time limit Non shorting
Terminal shape For PC board
Action force 0.7N max.
Installation method PC board
Operating temperature range - 40℃ to +85℃
Maximum rated / minimum rated (resistive load) 0.1A 12V DC/50 μ A 3V DC
Electrical properties Contact resistance (initial / after service life) 100mΩ max./300mΩ max.
insulation resistance 100MΩ min. 100V DC
Withstand voltage 100V AC for 1 minute
Mechanical properties Terminal strength 5N for 1 minute
Strength of operation part 10N
Durability No load life 50,000 cycles 300mΩ max.
Load life (maximum rated load) 50,000 cycles 300mΩ max.
Environmental resistance Cold resistance - 40℃ 500h
Heat resistance 85℃ 500h
Moisture resistance 60℃, 90 to 95%RH 500h
Minimum order unit (PCs.) Japan six hundred
Export 3,000
Packing specification
bulk
Number of packages (PCs.) 1 case / Japan six hundred
1 case / export package 3,000
Size of export packing box (mm) four hundred × two hundred and seventy × two hundred and ninety
Welding conditions
Reference examples of immersion welding methods
Project Preheating temperature -
Preheating temperature and time -
Immersion welding welding temperature 260±5℃
Welding immersion time 5±1s
Reference examples of manual welding methods
welding temperature 350±10℃
Welding time 3+1/0s
