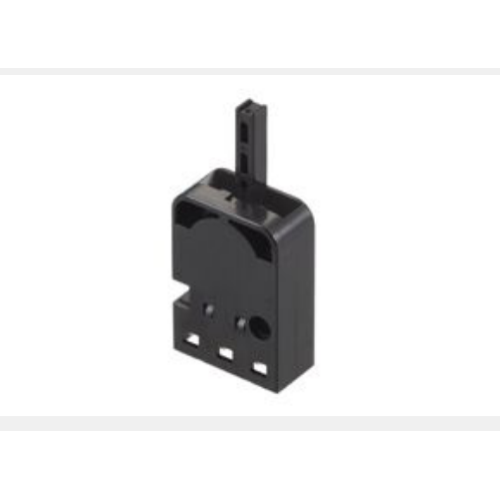

Bidirectional action type with female connector terminal

Product number:SSCL110101

Number of circuits one
Connection points two
Terminal shape Female connector type
Action force 0.7N max.
Tilt angle (maximum on one side) 36°
Operating temperature range - 40℃ to +85℃
Maximum rated / minimum rated (resistive load) 0.1A 12V DC/50 μ A 5V DC
Electrical properties Contact resistance (initial / after service life) 500mΩ max./1Ω max.
insulation resistance 100MΩ min. 100V DC
Withstand voltage 100V AC for 1 minute
Mechanical properties Strength of operation part 10N
Durability No load life 50,000 cycles 1Ω max.
Load life (maximum rated load) 50,000 cycles 1Ω max.
Environmental resistance Cold resistance - 40℃ 500h
Heat resistance 85℃ 500h
Moisture resistance 60℃, 90 to 95%RH 500h
Minimum order unit (PCs.) Japan 1,000
Export 5,000
Packing specification
bulk
Number of packages (PCs.) 1 case / Japan 1,000
1 case / export package 5,000
Size of export packing box (mm) four hundred × two hundred and seventy × two hundred and ninety
Indicates a comment common to this series.
The color of the products in this catalogue is different from that of the real object.
Please order with n (integer) times of the minimum order unit.
This series of products can also be used for vehicle.
Although the operating temperature range of is larger than usual, please carefully confirm the formal technical specifications when using.
