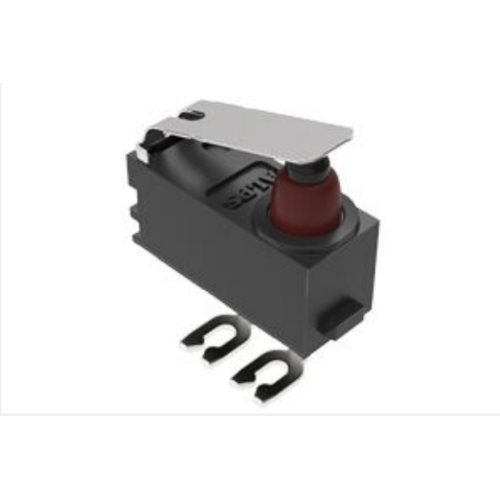

ALPS Waterproof type Detection switch

Product number：SPVQ6R

Resistance built-in type
Number of circuits one
Connection points one
Switching time limit Non shorting
Shape of operation part Actuator
Terminal shape Crimping / crimping (normal type)
Action force 3N max.
Host shape No protrusion / left bend
Operating temperature range - 40℃ to +85℃
Maximum rated / minimum rated (resistive load) Separate correspondence
Electrical properties Contact resistance (initial / after service life) Separate correspondence
insulation resistance Separate correspondence
Withstand voltage Separate correspondence
Mechanical properties Terminal strength 3N for 1 minute
Strength of operation part 20N
Durability No load life 300,000 cycles
Load life (maximum rated load) Separate correspondence
Environmental resistance Cold resistance - 40℃ 500h
Heat resistance 85℃ 500h
Moisture resistance 60℃, 90 to 95%RH 500h
Minimum order unit (PCs.) Japan 1,500
Export 6,000
Packing specification
Tray
Number of packages (PCs.) 1 case / Japan 1,500
1 case / export package 6,000
Size of export packing box (mm) five hundred and forty × three hundred and sixty × two hundred and seventy
Indicates a comment common to this series.
The color of the products in this catalogue is different from that of the real object.
This product cannot be used in water (dustproof / waterproof performance meets IP67, except for the terminal part).
Please order with n (integer) times of the minimum order unit.
This series of products can also be used for vehicle.
Although the operating temperature range of is larger than usual, please carefully confirm the formal technical specifications when using.
