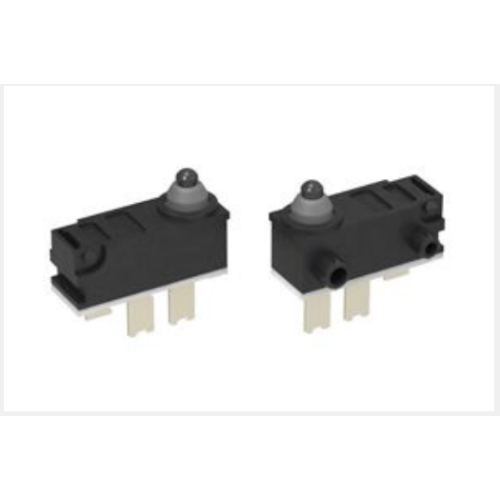

ALPS Waterproof type Detection switch

Product number:SPVQ740403

Number of circuits one
Connection points one
Switching time limit Non shorting
Shape of operation part Push
Terminal shape For Lead
Action force 1±0.5N
Host shape Right protrusion
Operating temperature range - 40℃ to +85℃
Maximum rated / minimum rated (resistive load) 0.1A 12V DC/50 μ A 5V DC
Electrical properties Contact resistance (initial / after service life) 500mΩ max./1Ω max.
insulation resistance 100MΩ min. 500V DC
Withstand voltage 500V AC for 1 minute
Mechanical properties Terminal strength 3N for 1 minute
Strength of operation part 20N
Durability No load life 300,000 cycles 1Ω max.
Load life (maximum rated load) 300,000 cycles 1Ω max.
Environmental resistance Cold resistance - 40℃ 500h
Heat resistance 85℃ 500h
Moisture resistance 60℃, 90 to 95%RH 500h
Minimum order unit (PCs.) Japan 1,350
Export 5,400
Packing specification
Tray
Number of packages (PCs.) 1 case / Japan 1,350
1 case / export package 5,400
Size of export packing box (mm) five hundred and forty × three hundred and sixty ×  two hundred and seventy
Welding conditions
Reference examples of manual welding methods
welding temperature 300±10℃
Welding time 3+1/0s
Indicates a comment common to this series.
The color of the products in this catalogue is different from that of the real object.
This product cannot be used in water (dustproof / waterproof performance meets IP67, except for the terminal part).
Please order with n (integer) times of the minimum order unit.
This series of products can also be used for vehicle.
Although the operating temperature range of is larger than usual, please carefully confirm the formal technical specifications when using.
