Thin Two-way Switch 0.35N Max.

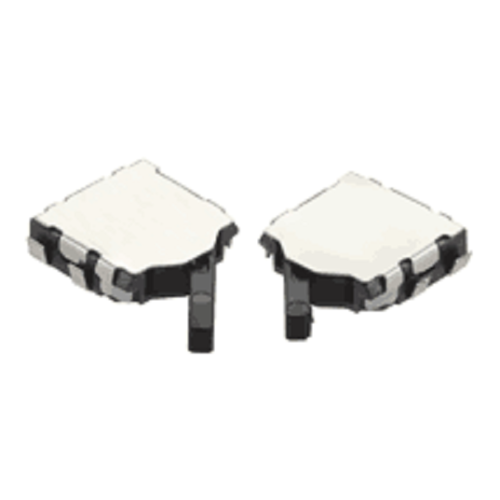

SPVN210106 is a thin type of two-way action type, a thin switch with a thickness of 1mm. The operation direction of this product is left and has a positioning pin. This product is mostly used in FP-TV HD audio, DVD player, personal audio, camera, health care products, PC and peripheral equipment, mobile phone and peripheral equipment, navigation system, car audio equipment. You can communicate your needs with us, and we will recommend the most suitable products for you according to your needs

Product ID:SPVN210106

Number of circuits:1

Number of contacts:1

Terminal shape:For PC board (Reflow)

Action force:0.35N max

Wrench length:Standard

Operating direction:Left

Positioning pin:YES

Operating temperature range:-40℃ to +85℃

Maximum rated / minimum rated (resistive load):1mA 5V DC/50μA 3V DC

Electrical performance

Contact resistance (initial/post-life):2Ω max./5Ω max.

Insulation resistance:100MΩ min. 100V DC

Withstand voltage:100V AC for 1 minute

Mechanical behavior

Terminal strength:0.5N for 1 minute

Operating strength:5N

Durability

No load life:50,000 cycles 5Ω max

Load life (maximum rated load):50,000 cycles 5Ω max.

Environmental resistance

Cold resistance:-40℃ 96h

Heat resistance:85℃ 96h

Humidity resistance:40℃, 90 to 95%RH 96h

Minimum order unit (pcs.)

Japan:5,000

Export:20000
