0.35N Operating Force Detection Switch

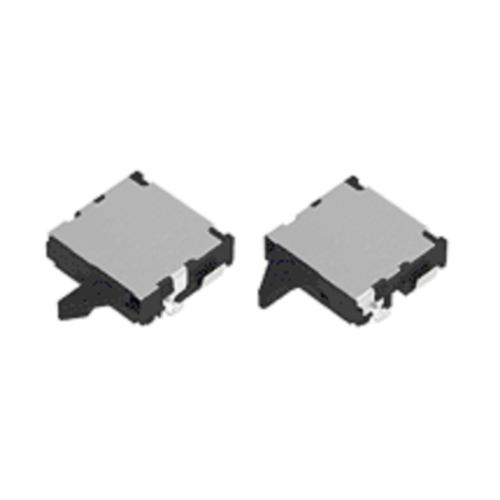

SPVS410100 is a small two-way operation switch with two types of normally open and normally closed circuits. There are frame feet, positioning pins, the circuit is N/O, the operating direction is Left, and the length of the wrench is Standard. This product is mainly used in FP-TV high-definition audio/DVD players, personal audio, cameras, healthcare products, PCs and peripherals, mobile phones and peripherals, wearable terminals, navigation systems, car audio equipment. You can communicate your needs with us, and we will recommend the most suitable products for you according to your needs

Product number：SPVS410100

Number of circuits：1

Connection points: 1

Terminal shape:For PC board (Reflow)

Action force:0.35N max.

Length of wrench:Standard

Operation direction:Left

Circuit:N/O

Locating pin: YES

Frame foot:YES

Operating temperature range:-40℃ to +85℃

Maximum rating / minimum rating (resistive load):1mA 5V DC/50μA 3V DC

Electrical properties

Contact resistance (initial / post life):2Ω max./5Ω max

insulation resistance:100MΩ min. 100V DC

Withstand voltage:100V AC for 1 minute

Mechanical properties

Terminal strength:0.5N for 1 minute

Strength of operation section:5N

Durability

No load life:50,000 cycles 5Ω max.

Load life (maximum rated load):50,000 cycles 5Ω max.

Environmental resistance

Cold resistance:-40℃ 96h

Heat resistance:85℃ 96h

Moisture resistance：40℃, 90 to 95%RH 96h

Minimum order unit (PCs.)

Japan：5000

Exit：20000
