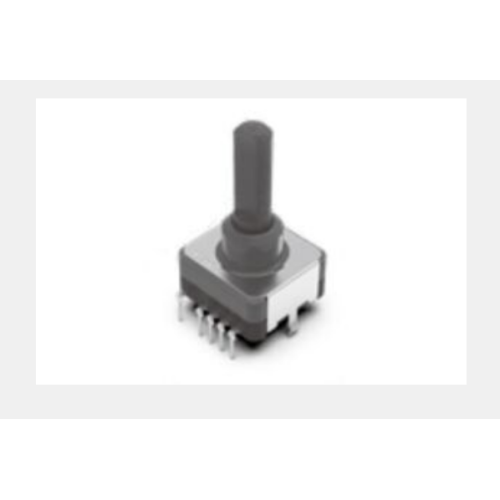

Ec18a series Absolute encoder

Product number:EC18AGB20407

Shape of operation part Horizontal axis
Length of operation section 32.56mm
Positioning torque 60±20mN･m
Direction of operation section Vertical
Number of positions fifteen
Operating temperature range - 20℃ to +60℃
Electrical properties rated 1mA 10V DC
insulation resistance 10MΩ min. 250V DC
Withstand voltage 50V AC for 1 minute or 60V AC for 2s
Mechanical properties Shaft push-pull strength Push 100N / pull 50N
Durability Operating life 30,000 cycles
Water resistance Under normal temperature, immerse the encoder at rest in a water depth of 1m and keep it for 30 minutes.
Minimum order unit (PCs.) Japan four hundred and fifty
Export nine hundred
Welding conditions
Reference examples of immersion welding methods
preheat Surface temperature of welding surface 100℃ max.
heating time 2 min. max.
Immersion welding welding temperature 260±5℃
Welding time 5±1s
Welding times 2 time max.
Reference examples of manual welding methods
Soldering iron head temperature 350℃ max.
Welding time 3s max.
Welding times 1 time
