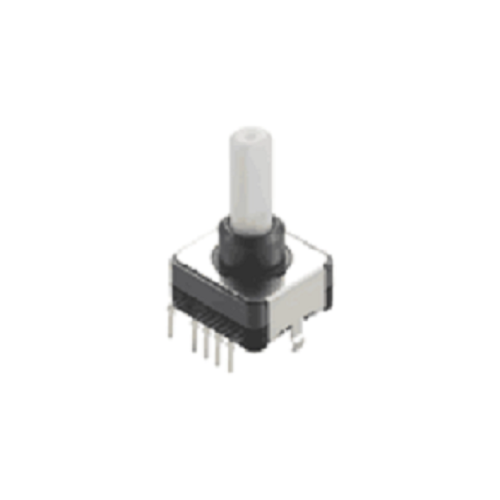

Waterproof encoder used in home appliances

Product number: EC18AGB20401

Operating part shape：Flat shaft

Operating part length：29.31mm

Positioning torque：60±20mN·m

Operation direction：Vertical

Number of positions：16

Operating temperature range：-20℃ to +60℃

Electrical properties

Rated：1mA 10V DC

Insulation resistance：10MΩ min. 250V DC

Withstand voltage：50V AC for 1 minute or 60V AC for 2s

Mechanical behavior

Shaft push-pull strength：Push 100N / Pull 50N

Durability

Operating life：30,000 cycles

Water resistance：In a normal temperature environment, immerse the encoder in a static state in a water depth of 1m and keep it for 30 minutes

Minimum order unit (pcs.)

Japan：450

Exit：900
