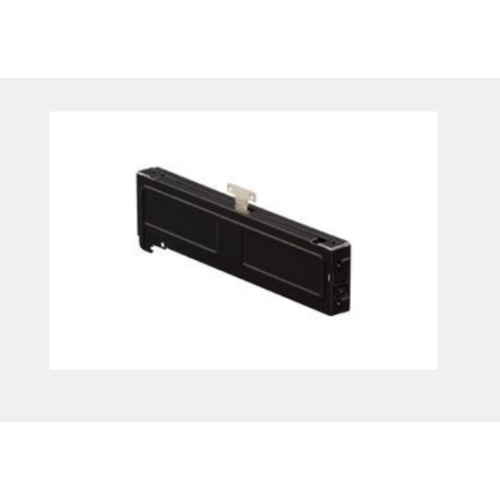

RSA0K Series Slide Potentiometer

Product Number:RSA0K12A901H

Number of resistors 2

Installation Direction Vertical

Trip 100mm

Type Standard type

Operations Shape 9-T (T-Bar)

Operating length 8.2mm

Total resistance 10 K

Resistance Law 15A

Use temperature range -10 to +60 C

Permissible difference of total resistance value (+20%)

Maximum operating voltage 350V AC, 20V DC

Rated power 0.25W

Insulation resistance 100Mmin. 250V DC

Voltage resistant 250V AC for 1 minute

Mechanical Performance - Motion Force 0.4 +0.3N

Stop Strength 100N

Push-pull strength of operating unit 100N

Transverse vibration of operating unit (both sides) 1.312mm

The eccentricity of the operating part (one side) is 0.5mm max.

Durability - Operating life 100,000 cycles

Minimum Order Unit (pcs.) Japan 50

Export 100
Welding Conditions

Reference examples of manual welding methods

Pyramid head temperature 350 C max.

Welding time 3S max.

Number of welds 1 time
