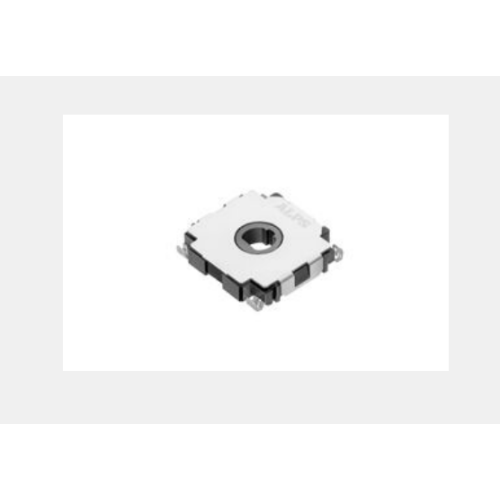

RDC80 Series Rotating potentiometer

Product Number:RDC803101A

Installation Method Reflow
Electrically effective variable angle 340 degrees (1 phase)
360 degrees (2 phases)
Linear Guarantee Range 330 degrees (1 phase)
360 degrees (2 phases)
linear +3%
Through hole shape φ4.05
Action Life 20,000 cycles
nominal resistance 10K
Use temperature range -40 C to +120 C
Electrical performance Total resistance allowable difference +30%
Rated power 5V DC
Mechanical properties Rotation Torque 10mN. m max.
Environmental resistance Cold resistance -40 C 168h
Heat resistance 120 C 168h
Humidity resistance 60 C
90 to 95%RH 96h
Minimum Order Unit (pcs.) Japan 1,600
Exit 1,600
