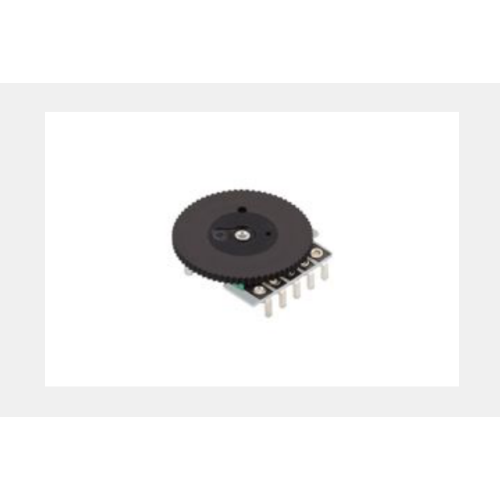

RK10J Series Rotating potentiometer

Product number:RK10J11E0034

Number of resistors Single connection
Total resistance 10kΩ
Resistance law 1B
welding method Manual
type Type 10
Type of operation Department Rotation diameter: φ fourteen
Plate thickness: t0.9
Color: Black
Type of mounting plate Insertion (2mm)
Available for DC 20V DC
Operating temperature range - 10℃ to +60℃
Electrical properties Allowable difference of total resistance ±30%
Rated power 0.03W
Maximum service voltage 50V AC
20V DC
Maximum attenuation 70dB min.
insulation resistance 100MΩ min. 100V DC
Withstand voltage 100V AC for 1 minute
Mechanical properties Full rotation angle 270°±10°
Rotating torque 0.5 to 10mN・m
Terminal stop strength 70mN·m
Shaft push-pull strength 5N
Durability Operating life 10,000 cycles
Minimum order unit (PCs.) Japan 3,000
Export 2,400
Welding conditions
Reference examples of manual welding methods
Soldering iron head temperature 350℃ max.
Welding time 3s max.
Welding times 1 time
