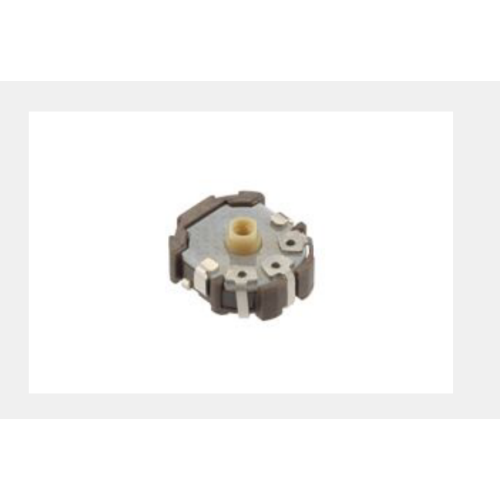

RK08H Series Rotating potentiometer

Product Number:RK08H1230012

Number of Resistors 2 pairs
Operational length 1mm
Central Positioning nothing
nominal resistance 10K
Resistance law 15A
welding method Reflow
Use temperature range -10 to +60 C
Electrical performance Total resistance allowable difference +30%
Rated power 0.03W
Maximum Usage Voltage 50V AC
Maximum attenuation 70dB min.
Mechanical properties Full rotation angle 200 [+] 10 [+]
Rotation Torque 0.5 to 10mN < m
Terminal Stop Strength 0.1N.m
Push-pull strength of shaft 10N
Durability Operating life 10,000 cycles
Minimum Order Unit (pcs.) Japan 4,000
Exit 4,000
