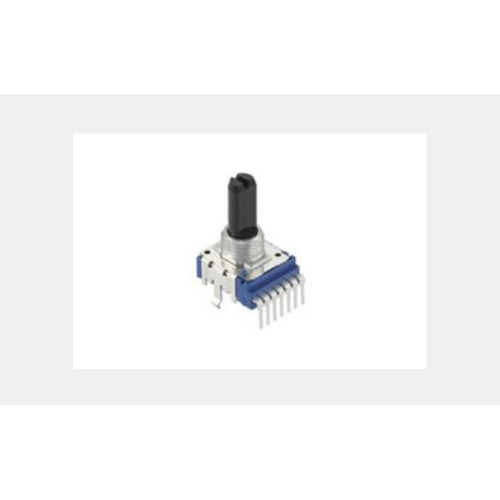

RK14K Series Rotating potentiometer

Product Number:RK14K124003H

Number of Resistors 2 pairs
Operating Department Direction Vertical
Axle sleeve Yes
Operating Department Shape Flat Axis
Operational length LM1 22.5MM
Central Positioning Yes
nominal resistance 10K
Resistance law 1B
Use temperature range -10 C to +70 C
Electrical performance Total resistance allowable difference +20%
Rated power 0.05W
Maximum Usage Voltage 50V AC for AC only
Mutual deviation Within center 2dB
insulation resistance 100Mmin. 250V DC
Voltage withstanding 300V AC for 1 minute
Mechanical properties Full rotation angle 300 [+] 5 [+]
Rotation Torque 3 to 20mN.m
Terminal Stop Strength 0.6N.m
Push-pull strength of shaft 80N max.
Vibration resistance 10 to 55 to 10Hz/min, full amplitude 1.5mm, 2 hours in X.Y.Z 3 direction
Durability Operating life 15,000 cycles
Minimum Order Unit (pcs.) Japan 1,000
Exit 2,000
Welding Conditions
Reference examples of manual welding methods
Soldering head temperature 350 C max.
Welding time 3S max.
Number of Welds 1 time
